Z490 second gpu slot x16?

Gofran
Level 8
so the one that have z490 can one of you guys check if the put gpu in second slot still runs x16
I have the xii formula an still waiting on rma

And wanted to know if its any difference between the same slots
2,834 Views
3 REPLIES 3

Silent_Scone
Super Moderator
Hello,

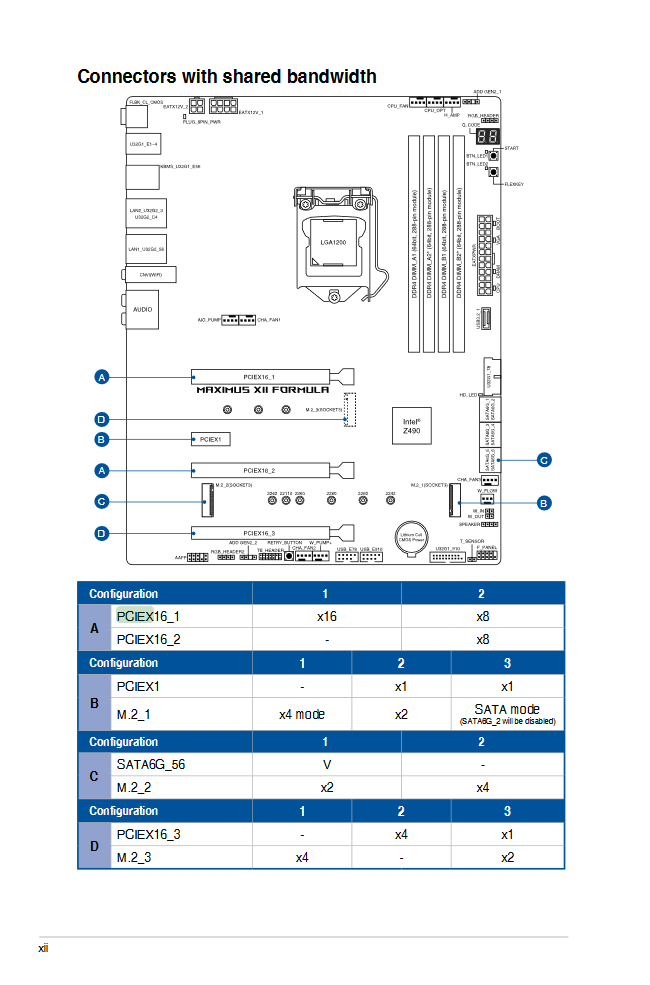

Slot configuration can be found within the manual on page 12.

85209
13900KS / 8000 CAS36 / ROG APEX Z790 / ROG TUF RTX 4090

Gofran
Level 8
Thank you for answering if seen that the only thing is what is - does it mean same as above x16 so yes it can run x16 or - runs only x8

Ch3vr0n
Level 10
check column 2 of section A. Clearly sais x8 on both slots (always has been that way on just about any board of the Z chipset i can remember). For the record, even under heavy gaming you should see very little to no difference at all.
