Problem bios 1412 VCORE up in Z370-F gaming

[Anubis_jero]

I have mobo asus rog strix z370 f-gaming and cpu i7 8700k. I do not know if it's a problem with the board or cpu. The vcore CPU went up to 2.144v, I did not overclck anything. This happened after installing windows I had driver problems, I also installed last bios 1412 and upgraded to 2.144v vcore. Even so I can use the pc with normality and normal temperatures in cpu. Cpuz says the same as I have oscillating 1.7 to 2.2v. I can play without problems. So I do not know if it's a mobo problem or the CPU is wrong

[Anubis_jero]

I tried and it's the same, I even use f5 ..... and I returned the 1412 and everything was the same

[Anubis_jero]

HiVizMan wrote:
Fine have you flashed version 1406? And does your BIOS show the correct voltage or still that high voltage?

I tried and it's the same, I even use f5 ..... and I returned the 1412 and everything was the same

[vista_sepehr]

Free BitCoin : https://get.cryptobrowser.site/3507475

Download Browser > Login > Get Free BitCoin

[Nate152]

vista_sepehr

I sent you a PM, do not post your spamming bitcoin here on the forum.

[HiVizMan]

Ok thank you.

So that leaves us two options to think about.

1 - your CPU is running at an insane amount of voltage 2.1.
2 - your CPU is NOT running at that voltage but the sensor is reading that voltage.

Please run Realbench and have CPUz open at the same time. I would like to know what CPUz is showing voltage wise on your vcore and what the temp of your CPU is during the benchmark. Only the max.

If your temps get above 95'C then shut the benchmark down. It is sounding more like a faulty sensor than anything else.


Just to recap.

You have used a usb drive to flash the bios to a previous version. 1406 bios. This bios shows the 2.1 voltage

You have no overclocking software installed on your system (windows based) not XTU or AI Suite or anything like that.

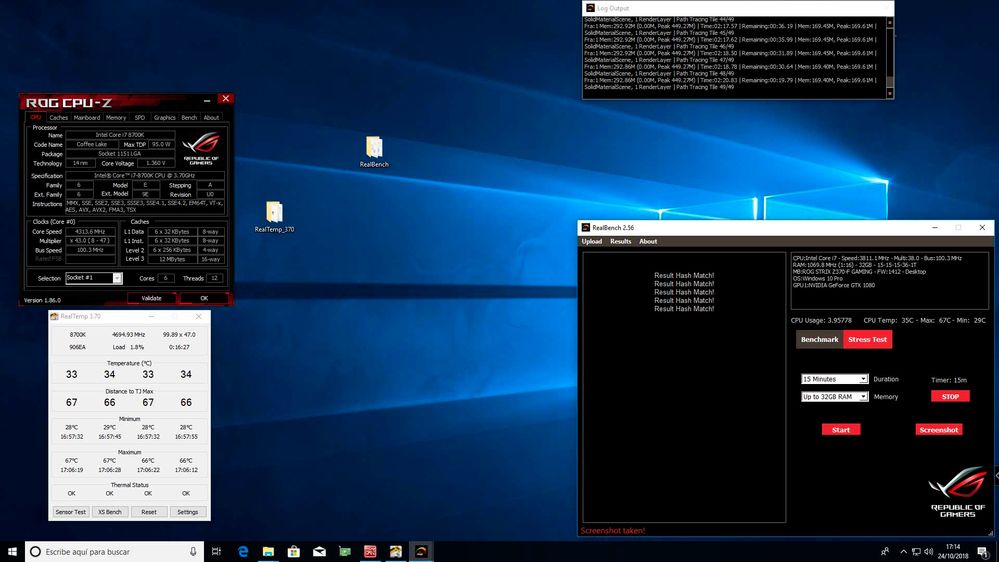

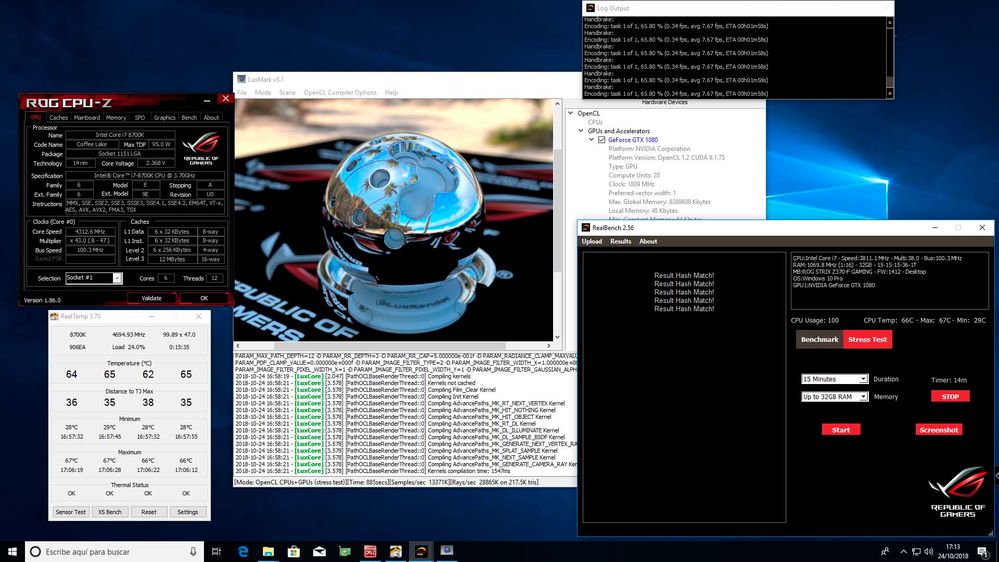

[Anubis_jero]

everything is not over 67ºC. Stress test for 15min. I do not step 2.368v
in the catch all




this after the test the vcore oscillates the voltage a lot

[HiVizMan]

I am 99.99% sure your voltage sensor is faulty. Those temps are consistent with 1.28 - 1.34 volts on the CPU at 100%.

Since you have changed BIOS twice now - correct? - I am not sure what else can be done besides narrow down where the sensor fail is.

CPU or Motherboard.

To test this do you have access to another motherboard, possibly if you put your CPU in a friends system and see if the same error in voltage reading occurs.

[Anubis_jero]

HiVizMan wrote:
I am 99.99% sure your voltage sensor is faulty. Those temps are consistent with 1.28 - 1.34 volts on the CPU at 100%.

Since you have changed BIOS twice now - correct? - I am not sure what else can be done besides narrow down where the sensor fail is.

CPU or Motherboard.

To test this do you have access to another motherboard, possibly if you put your CPU in a friends system and see if the same error in voltage reading occurs.

If I thought about this, I played 30 min and the temperature is normal. So I'm going to get another mobo to see if it's the micro that fails or is the mobo

[HiVizMan]

Please do let me know what you discover.

[Anubis_jero]

HiVizMan wrote:
Please do let me know what you discover.

YES. I say it when I know I hope on Friday to have the other mobo, thanks for everything.
