I have recently replaced my 5930K with a 5960X.
Voltages aside, overclock settings are the same between each system - 44x CPU and 42x cache.
Q1: I have C-STATES disabled. I am using Windows power settings to have the CPU clock down to ~12x when idle (minimum processor @ 20% or something). At 40x cache, this works without issue. At 42x cache, the PC will hang just after dropping the multiplier. I've tried LLC Auto -> 9 and increasing DRAM voltage. It did not appear to make a difference. Can anyone suggest which things in BIOS should I focus on to try and fix this issue?
*NOTE. If I use high performance power plan, system does not hang.

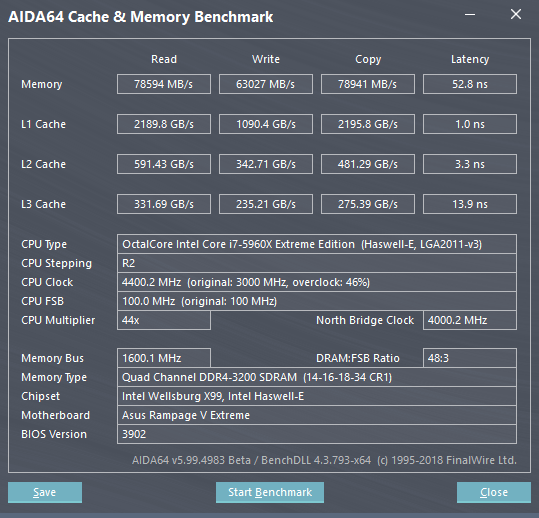

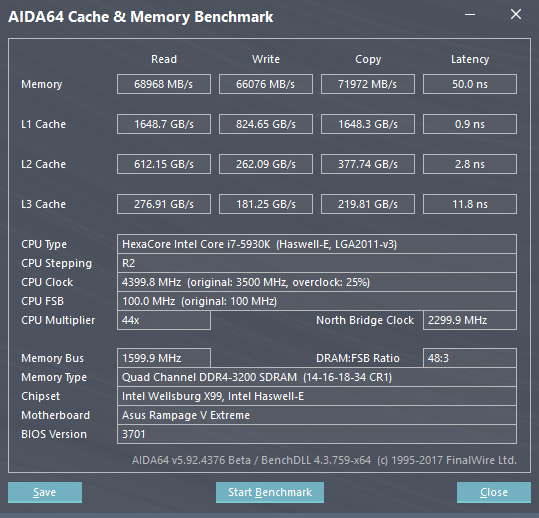

Q2: I am using AIDA64 cache and memory benchmark tool to measure performance. I am getting the expected result for READ and COPY, however, WRITE remained the same - it did not increase inline with READ / COPY. Is this expected / normal?
5930K
5960X
Many thanks!
Voltages aside, overclock settings are the same between each system - 44x CPU and 42x cache.
Q1: I have C-STATES disabled. I am using Windows power settings to have the CPU clock down to ~12x when idle (minimum processor @ 20% or something). At 40x cache, this works without issue. At 42x cache, the PC will hang just after dropping the multiplier. I've tried LLC Auto -> 9 and increasing DRAM voltage. It did not appear to make a difference. Can anyone suggest which things in BIOS should I focus on to try and fix this issue?
*NOTE. If I use high performance power plan, system does not hang.
Q2: I am using AIDA64 cache and memory benchmark tool to measure performance. I am getting the expected result for READ and COPY, however, WRITE remained the same - it did not increase inline with READ / COPY. Is this expected / normal?
5930K
5960X
Many thanks!
I've never been a fan of using the Balanced power profile in Windows. But if you want to do it successfully you'll have to boost ring voltage/cpu input voltage/pwm phase and dram, then it will work fine. If you can live with the extra power draw (and temperature) of running at locked 100% then you'll get away with lower voltages (that to a some degree will mitigate the higher performance profile). As side note I had the cache at 30x and cpu at 44-45x. Couldn't find any instance except for synthetic benchmarks where it made a difference.
As for your second question Aida has not always been reliable during memory benchmarks. I can't remember if it was HardOCP or some other review site that did a big comparison of all high core count processors and found that Aida scores were all over the place. I've used Intels own memory tool and I think it gives more reliable numbers. Maybe the more experienced members have other suggestions.
Intel Memory Latency Checker can be found here https://software.intel.com/protected-download/739797/493768
It has some useful tests. You can benchmark with read-write-ratios that more closely resemble some real-world scenarios.
In short, I wouldn't, stress too much over the write-score. I don't think it is measurable in any real-world testing scenario. Also I would not set the cache to higher than 3200. Preferably keep it at 3000.
As for your second question Aida has not always been reliable during memory benchmarks. I can't remember if it was HardOCP or some other review site that did a big comparison of all high core count processors and found that Aida scores were all over the place. I've used Intels own memory tool and I think it gives more reliable numbers. Maybe the more experienced members have other suggestions.
Intel Memory Latency Checker can be found here https://software.intel.com/protected-download/739797/493768
It has some useful tests. You can benchmark with read-write-ratios that more closely resemble some real-world scenarios.
In short, I wouldn't, stress too much over the write-score. I don't think it is measurable in any real-world testing scenario. Also I would not set the cache to higher than 3200. Preferably keep it at 3000.
Both, thanks for taking the time to reply. Good to see that this forum is still active.
Before we begin, I'm on good cooling. I know the voltages are close to the acceptable limit. Temps are good.
For the CPU, I am Adaptive. Auto and 1.350 for Turbo. Was hitting around 1.360 on VCore0
For the cache, I am Offset. I got as high as +0.405. Was hitting > 1.380 on CPU Cache voltage. Adaptive would not boot.
"Balanced power profile in Windows": I'm not a fan of Windows either, but, needs must. I have customised the "High Performance" power plan, minimum processor only. I have to use this as I can not get the system stable with C-States. It is not locked at 100% and is dropping multiplier (and voltages) accordingly. See SIV LCD panel.
"boost ring voltage/cpu input voltage/pwm phase and dram": OK, thanks. Kinda my thoughts too. I've gone as high as I feel comfortable with cache (ring) / cpu. I will have a tinker with the others.
"Aida scores were all over the place": Yes, I agree. There is a lot of variance and unexpected results. I have never seen it with this magnitude. I've used AIDA for so long now, it has been my "performance" measuring stick. Time to renew license and post in their (his!) forum too!
"I wouldn't, stress too much over the write-score. I don't think it is measurable in any real-world testing scenario.": Noted, the only real gain is in benchmarks. It is fun trying tho! It's why I (we?) buy these boards and CPU's that are designed for overclocking.

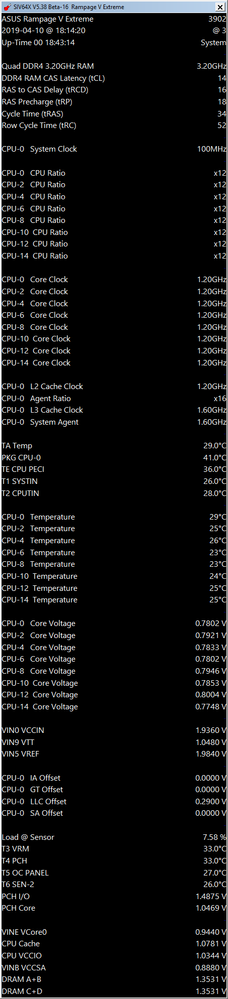

SIV LCD Panel showing stable system at idle with Windows power plan active.
Before we begin, I'm on good cooling. I know the voltages are close to the acceptable limit. Temps are good.
Arne Saknussemm wrote:
Are you setting manual cache voltage for 42x...because the board can set voltage that will power a small town at higher ratios
For the CPU, I am Adaptive. Auto and 1.350 for Turbo. Was hitting around 1.360 on VCore0
For the cache, I am Offset. I got as high as +0.405. Was hitting > 1.380 on CPU Cache voltage. Adaptive would not boot.
Tonyboj wrote:
I've never been a fan of using the Balanced power profile in Windows. But if you want to do it successfully you'll have to boost ring voltage/cpu input voltage/pwm phase and dram, then it will work fine. If you can live with the extra power draw (and temperature) of running at locked 100% then you'll get away with lower voltages (that to a some degree will mitigate the higher performance profile). As side note I had the cache at 30x and cpu at 44-45x. Couldn't find any instance except for synthetic benchmarks where it made a difference.
As for your second question Aida has not always been reliable during memory benchmarks. I can't remember if it was HardOCP or some other review site that did a big comparison of all high core count processors and found that Aida scores were all over the place. I've used Intels own memory tool and I think it gives more reliable numbers. Maybe the more experienced members have other suggestions.
Intel Memory Latency Checker can be found here https://software.intel.com/protected-download/739797/493768
It has some useful tests. You can benchmark with read-write-ratios that more closely resemble some real-world scenarios.
In short, I wouldn't, stress too much over the write-score. I don't think it is measurable in any real-world testing scenario. Also I would not set the cache to higher than 3200. Preferably keep it at 3000.
"Balanced power profile in Windows": I'm not a fan of Windows either, but, needs must. I have customised the "High Performance" power plan, minimum processor only. I have to use this as I can not get the system stable with C-States. It is not locked at 100% and is dropping multiplier (and voltages) accordingly. See SIV LCD panel.
"boost ring voltage/cpu input voltage/pwm phase and dram": OK, thanks. Kinda my thoughts too. I've gone as high as I feel comfortable with cache (ring) / cpu. I will have a tinker with the others.
"Aida scores were all over the place": Yes, I agree. There is a lot of variance and unexpected results. I have never seen it with this magnitude. I've used AIDA for so long now, it has been my "performance" measuring stick. Time to renew license and post in their (his!) forum too!
"I wouldn't, stress too much over the write-score. I don't think it is measurable in any real-world testing scenario.": Noted, the only real gain is in benchmarks. It is fun trying tho! It's why I (we?) buy these boards and CPU's that are designed for overclocking.

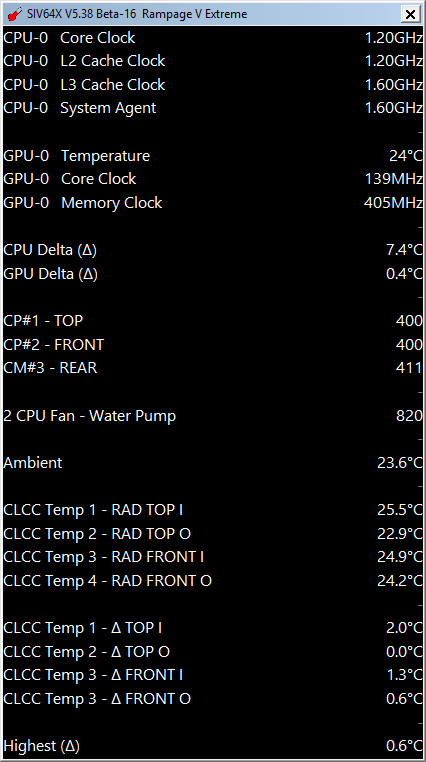

SIV LCD Panel showing stable system at idle with Windows power plan active.
