What is a Contact Frame?

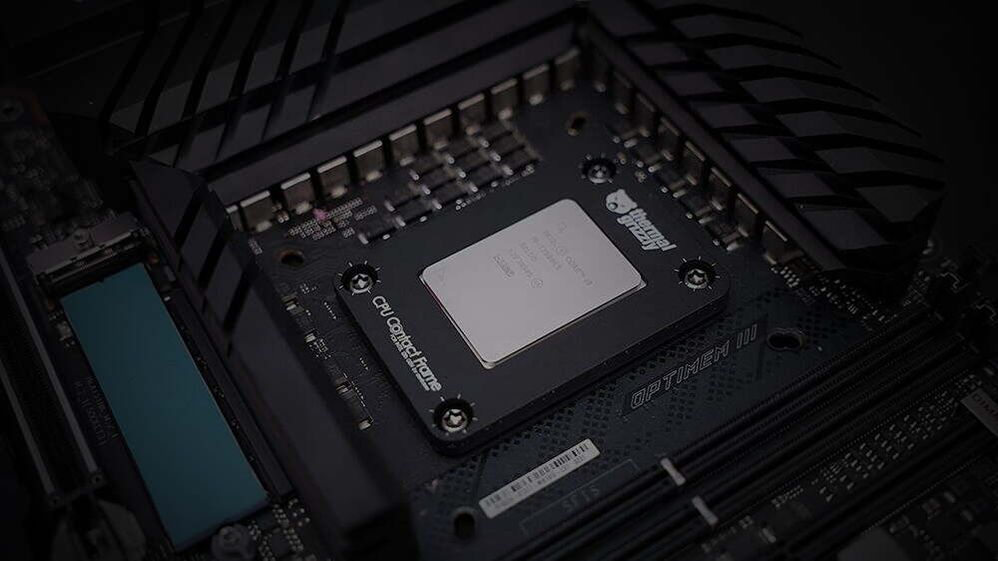

Contact frames for Intel CPUs, such as the popular 12th, 13th and 14th Gen processors on LGA1700 (and to a lesser extent FCLGA1851), are designed to improve cooling performance by addressing specific mechanical issues inherent to Intel’s socket. These processors are relatively thin and can bend slightly when mounted, leading to uneven pressure distribution across the integrated heat spreader (IHS). This bending can cause sub optimal thermal transfer to the cooler, resulting in higher temperatures.

This problem is amplified with Intel's monolithic die design. Unlike AMD’s chiplet architecture, Intel CPUs feature a single large die under the IHS, covering a large surface area. This means that even slight inconsistencies in pressure can create uneven thermal transfer or localised hotspots on the die.

Contact frames solve this issue by replacing the standard ILM (Integrated Loading Mechanism) with a-sturdier frame that applies more uniform pressure, preventing the CPU from bending and improving thermal application coverage. This can lead to measurable temperature improvements, especially for overclockers seeking every degree of thermal efficiency.

Does that mean contact frames are worth it on Intel platforms?

Yes, there are a number of studies that have shown that using a contact frame on sockets such as Intel's LGA1700 has certain benefits due to both the CPU and retention mechanism design.




Ok, what about on AMD?

AMD's AM5 socket does not suffer from the same bending problem as AMD CPUs use a different proprietary mounting system. Furthermore, AMD's chiplets are situated beneath specific areas of the IHS, so uniform coverage of the entire surface is less critical compared to Intel's monolithic dies.

Why Contact Frames aren't as important for AMD AM5

  1. No Bending Issue: The AM5 socket design and mounting pressure are already optimised, so contact frames don’t offer a meaningful improvement.

  2. Potential Hindrance: Over-torquing or misalignment caused by contact frames can disrupt the delicate balance of pressure required for proper thermal transfer, possibly leading to worse cooling performance.

  3. Impact on Overclocking: Over-torquing can also stress the motherboard socket and CPU substrate, potentially causing issues with electrical contact.

  4. Uneven Pressure on Chiplets: AMD's chiplet architecture means the critical areas under the IHS are already optimised for cooling with stock configurations. Introducing a third-party contact frame could interfere with this balance.



I installed a contact frame and now XMP/EXPO isn't working!

This is a potential side effect when altering how the CPU  is locked in place. With the stock retention mechanism, the amount of force applied to the socket is already predetermined and ready for you to install your CPU. With many contact frames on the market, it can be easy to over or under torque resulting in undesirable results.

This can cause slight warping of the CPU substrate or the motherboard, resulting in uneven contact between the CPU and socket pins or pads. Such misalignment can degrade signal integrity, introduce electrical resistance, and ultimately destabilise the system.

These effects are particularly concerning for overclocking, where stable electrical connections and precise voltage delivery are crucial. Over-torquing can also create thermal inconsistencies, reducing the efficiency of heat transfer and limiting your CPU's ability to maintain higher clock speeds under load.



But it helps keep thermal paste out of the gaps!

While the IHS design can make it easy for thermal compound to spread into areas you’d rather avoid—making cleanup a hassle—a contact frame isn’t the solution. Instead, companies like Noctua offer paste guards that effectively prevent this issue while preserving the stock retention mechanism. These guards ensure clean application and easy maintenance without the need to replace the stock retention mechanism.


Conclusion

Ultimately, whilst contact frames have known and tangible benefits in some cases on Intel based platforms when correctly installed, on AMD systems they remain largely redundant. Be sure to evaluate whether it's worth installing one on your system to avoid any unnecessary headaches during your build process!
