What PCI connectors do i need for gtx 1060 installation?

[Seanyboy11]

Hello, i bought a nvidia gtx 1060 and am going to put it in, the person who is installing it says i need some pci connectors for it, im not sure which ones i need to get? The connectors are the last item i need to purchase before i can this card going so if anyone knows, please help a brotha out! thanks.!

[Welsh_Whoopee]

Then you will need a few items. 1 x 6pin to 6pin & 8pin to 8pin power cables, 1 x 180 watts power brick, 1 x gtx 1060. you should have the right angle riser card which plugs into your pci-e line on the motherboard, what is your spec of your pc Seany?

6pin to 6pin http://thumbs.ebaystatic.com/images/g/J6oAAOSwA3tXokV1/s-l225.jpg

8pin to 8pin http://thumbs.ebaystatic.com/images/g/RjEAAOSwRgJXhIDu/s-l225.jpg

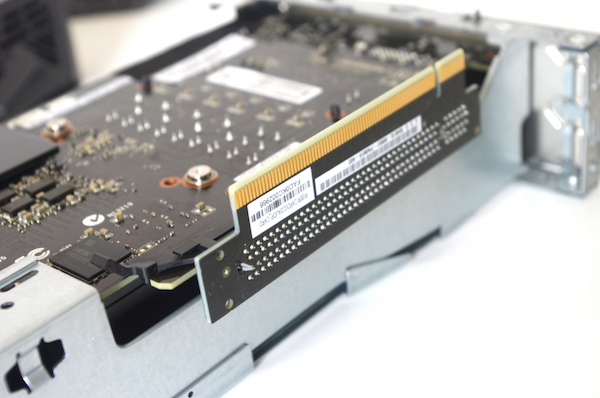

riser card http://www.hardwareluxx.de/images/stories/galleries/reviews/2016/asus-rog-g20/klein/asus_rog_g20_sky...

gtx 1060 founders edition http://i.nextmedia.com.au/News/NVIDIA-GeForce-GTX-1060-Founders-edition-2-870x489.jpg

[Seanyboy11]

thanks for your help, i have the i5 gtx750 3.2ghz 8g rog g20, got it last year, can feel it slowing down a bit so i figured id go ahead and replace that 750, i bought the 180 supply

this is the 180 supply i got - http://www.asus.com/us/Notebooks-Accessory/180W_G_Series_NB_Adapter_N180W02/

ive checked the forums and it seems the one needed is 19v - 9.5 A, mine is 19.5v - 9.23 directly from the asus site itself.

[Seanyboy11]

also, i found 6 pin to 8 pin only, cant find any 6 pin to 6 pins, is it ok if i got ahead and just by the 6 to 8? another thing, is 4 inches long enough for the connectors?

[Seanyboy11]

bump

[Yngwe]

Here is the 6-pin to 6-pin that I recently ordered, and it worked perfectly: http://www.ebay.com/itm/331925843634

[Seanyboy11]

The guy who is doing the installation for the gtx 1060 says I need one male 6pin connector. Does that mean a male to male connection? Or male to female connection? Thanks

[Welsh_Whoopee]

Seanyboy11 wrote:
The guy who is doing the installation for the gtx 1060 says I need one male 6pin connector. Does that mean a male to male connection? Or male to female connection? Thanks

male to male, and a single 6pin to 6pin will do the job, it don't matter that you don't use the second power port

Welsh Gaming

[dianebrat]

Seanyboy11 wrote:
ive checked the forums and it seems the one needed is 19v - 9.5 A, mine is 19.5v - 9.23 directly from the asus site itself.

That's close enough and not something I'd worry about.

[annyh1lator]

Hi, inside the g20 u will have two connectors.(if u will have version with 970 or 980) 6 and 8 pin. Just install 1060 in pci slot, connect 6 pin and that's it.
