All the same rules still apply for the x299 chipset, as far as I can tell. I think the short answer to your question is no, and no.
RAID 0/1/5/10 is only supported with Intel SSD's, and only the VROCISSDMOD key. RAID 0 works through passthrough mode, and the key is needed for RAID 1/5/10
Notice the greyed out "create volume" box. The first SSD (477 GB) is an Intel 760p in Dimm.2_1 and the 970 (my system disk) is on a x4 card in the PCIe 8_4 slot with a water block. My other 970 Evo Plus and 960 Evo don't show up here (PCH Enabled) and are in the M2.1 and M2.2 slots.
I have been reading about getting this board and I wish to understand the following:
On page 1-20 says this about the DIMM.2 : ï¿½ These sockets support IRSTe (Intelï¿½ Rapid Storage Enterprise Technology).
If I want to run raid 0 using the DIMM.2, do I need to buy the VROC key and use only intel ssd's?
I have only to play with 2 x Samsung 970 evo plus and AFAIK the other M.2_1 and M.2_2 (Page 1-19_ sources from the PCH and therefor I am limited to 3.5GB/s
Do you guys know if it may be possible to use the 2 Samsung 970 evo plus with the DIMM.2 and enable raid 0 without vroc?
Thanks a lot for your help.
à¹ŒNo mate , Due it was different controller , DIMM.2 were use CPU and PCH lane PCIe 3.0.

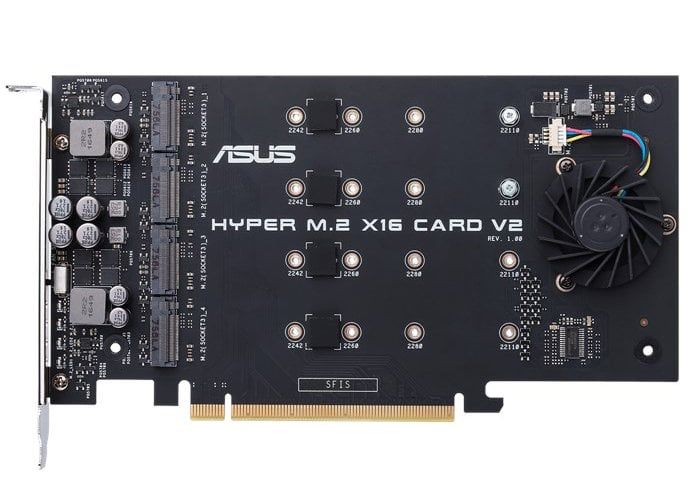

To setting up RAID-0 you must use ASUS NVME RAID card instead of DIMM.2.
