Arne Saknussemm wrote:
All the Qconnectors are the same...same pin-out on all MBs.

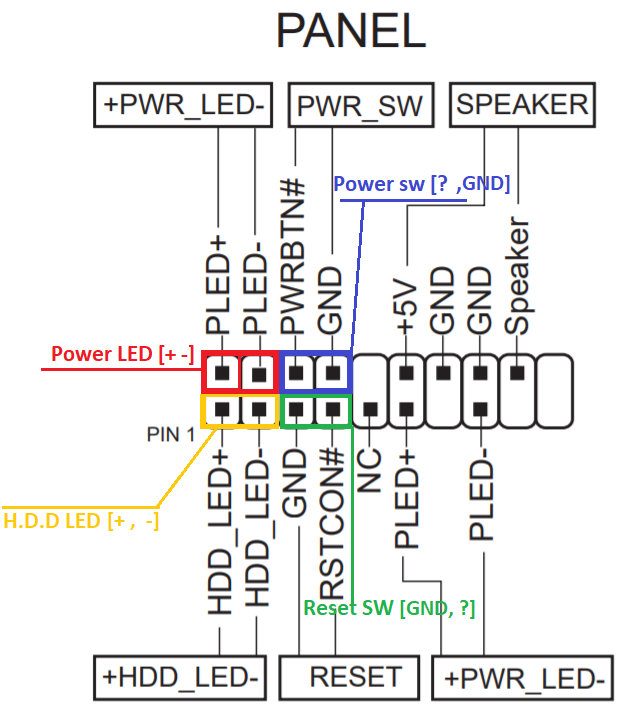

Here's a diagram...
General rule of thumb...connect connectors with writing side down and they'll be right orientation +/-...
