M.2 Install to Rampage VI E - Omega HELP

Counteragent
Level 8

‎04-27-2019 12:57 AM - last edited on ‎03-06-2024 08:22 PM by Community Admin

Hi Guys,

Firstly I've just finished my new build with the Rampage VI Extreme Omega Motherboard.

First power up was a success. But windows failed to install. BSOD.... Ended up having to disable the Wireless adapter.

Anyhow my question is, I have installed 2 x NVME PCIE Drives to the Motherboard and 2 x NVME PCIE Drives to the Dimm.2. I've installed Windows 10 but I only see just the 1 Drive.

I know Dimm.2 needs to be enabled via BIOS I'll have to check this again I thought it was already enabled.

Any help and advise on this?



Thanks.
MB: ASUS Rampage V Extreme
CPU: Intel Core i7 5960X Extreme Edition
RAM: Dominator® Platinum Series 32GB (4 x 8GB) DDR4 DRAM 2800MHz
PSU: Corsair AX1200i Digital ATX Modular
GFX: 3 x EVGA GTX Titan Black Superclocked 6GB
SSD: 2 x Samsung 850 Pro Series 512Gb SSD Raid 0
HDD: 2 x WD4003FZEX WD Black 4TB Raid 0
1234;2 x WD1000DHTZ WD VelociRaptor 1TB Raid 0
MON: Dell Ultra Sharp 32 Ultra HD Monitor - UP3214Q
CASE: Silverstone Temjin TJ11 Black with Window Case
OS: Win7 x64bit
0 Kudos
2,615 Views
3 REPLIES 3

Hopper64
Level 16

‎04-27-2019 01:29 AM

There’s a setting in the bios under advanced/onboard devices configuration which enables/disables the m.2. Are you running 3 video cards? That may cause a lane allocation issue.
MZ790AE Bios 2001, GSkill F5-8400J4052G24GX2-TR5S, 14900KS, EKWB D5 TBE 300, Seasonic Prime TX-1600 ATX 3.1 Noctua Edition, Asus 5090 Astral, Phanteks Enthoo Elite, Asus Claymore 2, Asus Gladius 3, Asus XG349C, Samsung 9100 Pro, Windows 11 Pro
0 Kudos

Counteragent
Level 8
In response to Hopper64

‎04-27-2019 02:38 AM

Hopper64 wrote:
There’s a setting in the bios under advanced/onboard devices configuration which enables/disables the m.2. Are you running 3 video cards? That may cause a lane allocation issue.


Hi, no I'm just running single 2080 TI Sea Hawk at the moment.

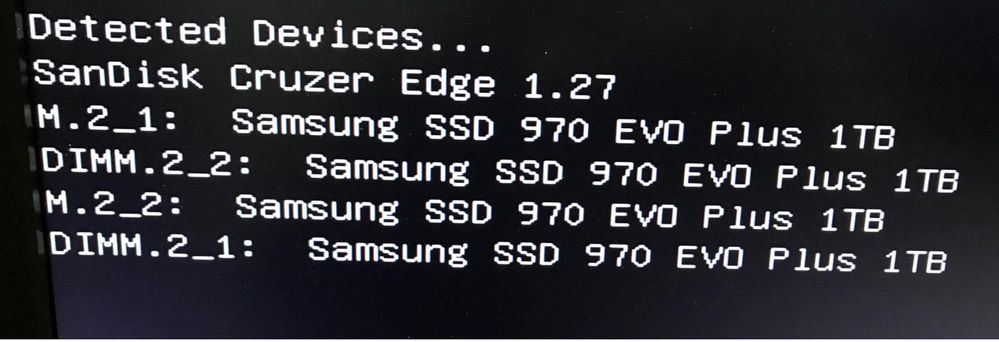

BIOS see's all the M.2 drives:

80226

But just not showing up in the OS.
MB: ASUS Rampage V Extreme
CPU: Intel Core i7 5960X Extreme Edition
RAM: Dominator® Platinum Series 32GB (4 x 8GB) DDR4 DRAM 2800MHz
PSU: Corsair AX1200i Digital ATX Modular
GFX: 3 x EVGA GTX Titan Black Superclocked 6GB
SSD: 2 x Samsung 850 Pro Series 512Gb SSD Raid 0
HDD: 2 x WD4003FZEX WD Black 4TB Raid 0
1234;2 x WD1000DHTZ WD VelociRaptor 1TB Raid 0
MON: Dell Ultra Sharp 32 Ultra HD Monitor - UP3214Q
CASE: Silverstone Temjin TJ11 Black with Window Case
OS: Win7 x64bit
0 Kudos

Counteragent
Level 8
In response to Counteragent

‎04-27-2019 03:21 AM

Counteragent wrote:
Hi, no I'm just running single 2080 TI Sea Hawk at the moment.

BIOS see's all the M.2 drives:

80226

But just not showing up in the OS.



Ok all good guys, got it sorted.

Went into Disk Management n bang there they were.... Maybe it was a matter of installing a raid driver.
MB: ASUS Rampage V Extreme
CPU: Intel Core i7 5960X Extreme Edition
RAM: Dominator® Platinum Series 32GB (4 x 8GB) DDR4 DRAM 2800MHz
PSU: Corsair AX1200i Digital ATX Modular
GFX: 3 x EVGA GTX Titan Black Superclocked 6GB
SSD: 2 x Samsung 850 Pro Series 512Gb SSD Raid 0
HDD: 2 x WD4003FZEX WD Black 4TB Raid 0
1234;2 x WD1000DHTZ WD VelociRaptor 1TB Raid 0
MON: Dell Ultra Sharp 32 Ultra HD Monitor - UP3214Q
CASE: Silverstone Temjin TJ11 Black with Window Case
OS: Win7 x64bit
0 Kudos
