HELP: ASUS Rampage VI Extreme Omega Motherboard Back

headbreaker
Level 7
Greetings everybody,

I'm in need pictures of the ASUS Rampage VI Extreme Omega Motherboard , with an as big resolution as possible.

Because I have a Board at the Asus RMA, and they say that I have manipulated a soldered joint, which is definitely not the case.

I have found some pictures at Google where you can see similar soldered joint as the one on my board, but the resolution is not high enough to convince the support.

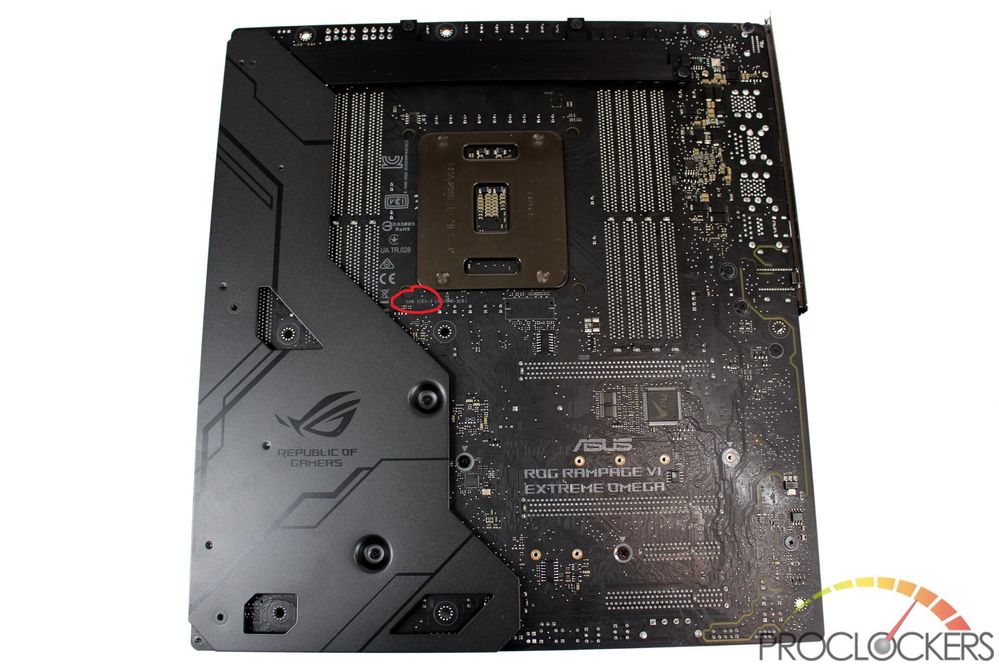

On the picture below I have marked the position, it would really be great to get two or three pictures as possible.

With best regards
Tim

92522
950 Views
1 REPLY 1

Cherry_PL_
Level 11
92528

92529

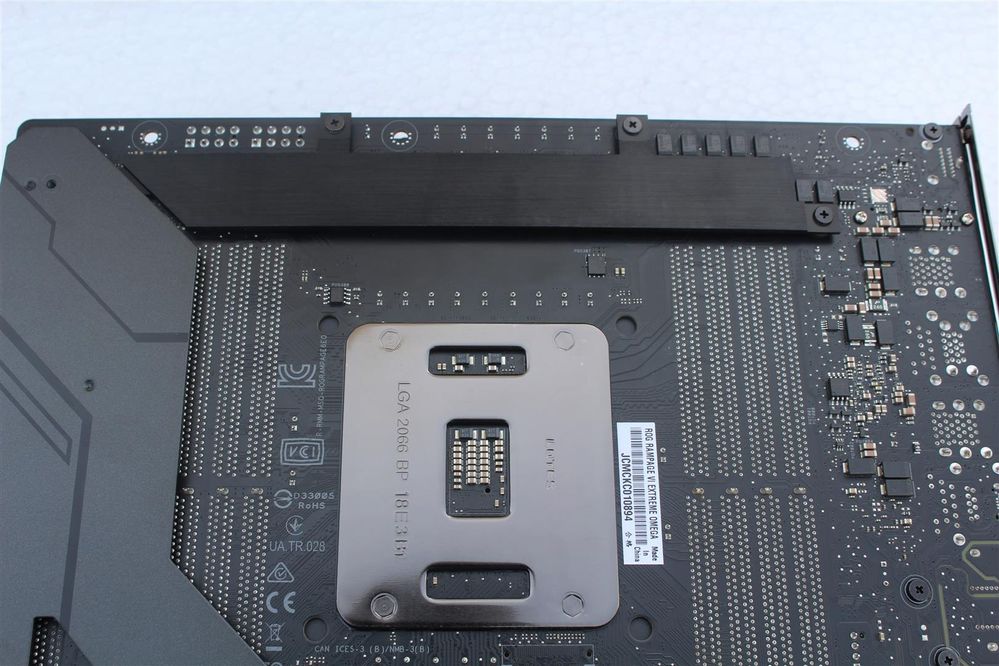

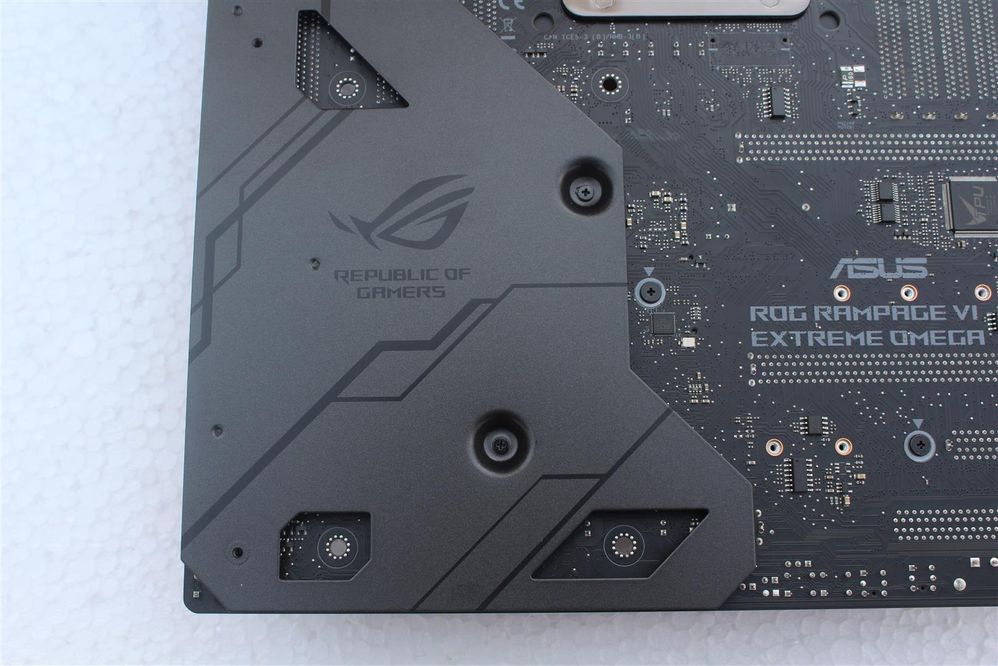

That's all i found.
