Rampage IV Black Edition - Not starting QCod 19 and 14 then power off.

[micltan]

Hi Everyone.

I recently built a computer with these specs.

RAMPAGE 4 BE (serial ends with 0603)
i7 4960x
Corsair 2133 Dominator 32gb
Corsair H100i CPU water cooler.
ASUS 780 Stix 6gb GPU


It was working perfectly, then I decided to install an extra fan in my case which also has LEDs


I plugged the fan power into FAN2 which worked fine.
Stupidly, I then plugged the on/off for the fan LEDS into TEMP2, bad idea!

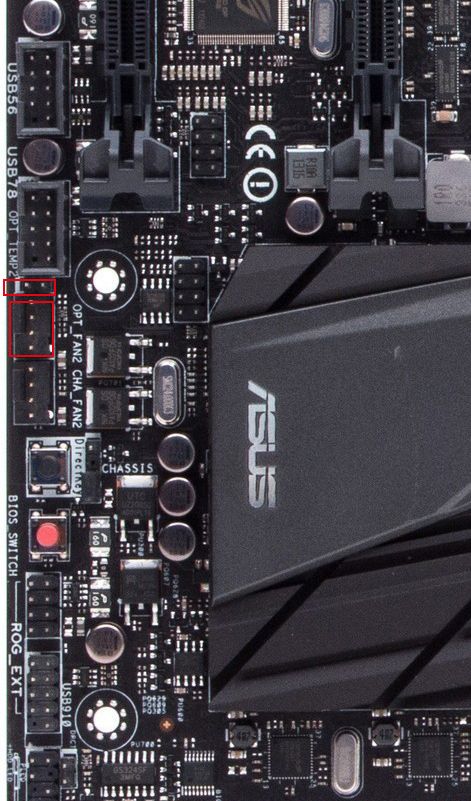

Here is a picture of the connections for your reference.


The computer started then shutdown almost immediately.

Now when I hit the power button it powers up for a about a second, the error code goes from 19 to 14 then shutsdown.

I'm worried I fried my mobo.

Searching the internet, this seems like a similar problem, should I try doing these steps
http://www.tomshardware.co.uk/answers/id-1993676/asus-rampage-black-boot.html

If anyone can help me, I would be so happy.

Cheers
MT

[micltan]

More specs after reading the template post 🙂

Motherboard model: Rampage 4 black edition

UEFI Version: Not sure

CPU: 4960X
Memory kit part number (s) and amount in GB: Corsair Dominance 4 x 8gb (32gb)

GPU: ASUS GTX780 OC STRIX 6gb

SSD/HDDs/Optical drives:
LG BLU RAY BURNER
SAMSUNG EVO 840 250gb
2 X WD BLACK 2TB

PSU: CORSAIR AX860i

USB Devices (model/version number):

Monitor: DELL 27inch

CPU Cooler: Corsair H100i

PC CASE: CoolerMaster HAV XB

Operating system: Windows 8.1

System Overclocked (provide details)? NOT OC
