Maximus Vii Formula New CPU installed error

Xanoid
Level 7
I am constantly getting this message. I am using an intel 4790k CPU and have even tried the 4770K CPU but keep getting thefollowing message "New CPU installed. Please enter setup to configure the system".

I have entered the system setup by pressing F1 and set everythig to default,saved and exit setup to find the same message as above.

System Specs are:
Corsair Dominator Platinum 2133 mhz (Even tried with a different set of RAM,single sticks).
PSu: Coolermaster v1200 Platinum
Gtx 780
Corsair H105 Cooler
Intel 4790k CPU
MAx VII Formula MB
Bios: 0603. (Had also tried with an older bios to the same error,then upgraded bios to 0603)

Also the Ram timings are not sticking even after enabling xmp profile .
Other ram profiles are sticking for example the corsair vengence 1666mhz.

Please help.
Maximus VII Formula
Asus Titan X
Intel 4790k
Corsair Dominator Platinum 32GB 2133Mhz
Win 8.1 Pro
Intel 730SSD 240GB, Samsung 840Pro 512GB,Samsung 840Pro 512GB
Coolermaster V1200 Platinum PSU
Nzxt Phantom 820,Logitech G710+(Keyboard),G502(Mouse).
168 Views
32 REPLIES 32

Xanoid
Level 7

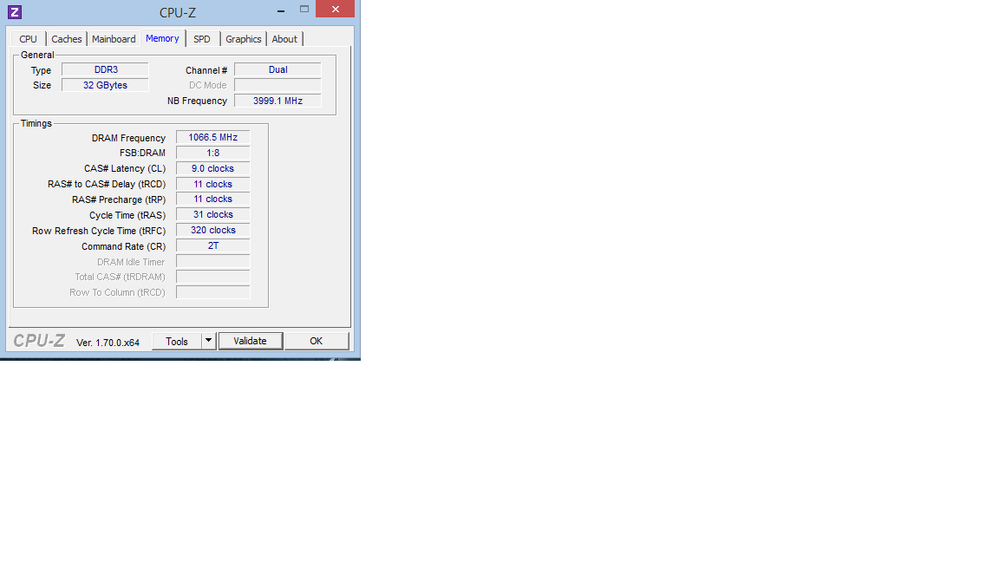

Sorry for the delay . CPU-Z Memory module is as follows:
I do not understand why it is showing 1066
41548
Maximus VII Formula
Asus Titan X
Intel 4790k
Corsair Dominator Platinum 32GB 2133Mhz
Win 8.1 Pro
Intel 730SSD 240GB, Samsung 840Pro 512GB,Samsung 840Pro 512GB
Coolermaster V1200 Platinum PSU
Nzxt Phantom 820,Logitech G710+(Keyboard),G502(Mouse).

Nate152
Moderator
you must have an exceptional 4790k, yours is the first I've seen that can do 32GB at 2133MHz.

DDR stands for double data rate 1066.5 x 2 = 2133. Your ram is running at 2133MHz.

Thank you for posting that.

Xanoid
Level 7
Ha wow and I thought I was running at 1066mhz lol.
Thanks for the information Nate and you have been a great help.
Cheers
