RaptorLake Resources

Shamino
Moderator

i will use this as a collection of test bioses/tools/info targeted towards Raptorlake + z69/790

NOTE for Z690: You must update ME on your Z690 to properly support raptorlake (if you are on dual bioses then you need to do this to both bioses)

1) d/l and install ME driver
https://dlcdnets.asus.com/pub/ASUS/mb/03CHIPSET/DRV_MEI_Intel_Cons_ADL_TP_W11_64_V2229320_20220809B....

2) update ME with ME Update Tool (I know there are newer versions but its not up on Asus official site yet so >= this version is fine)
https://dlcdnets.asus.com/pub/ASUS/mb/03CHIPSET/MEUpdateTool_16.1.25.1885_T.zip

3) update to Latest BIOS of your choice

Note 2 for Z690: i have some Z690s that are already LOW in battery so you are advised to use a new Battery during this upgrade.

New test bioses

Z690 Apex

Z690 Extreme

Z690 Hero

Z690 Hero Eva

Z690 Extreme Glacial

Z690 Formula

Z690 Strix E

Z690 Strix F

Z690 Strix G

Z690 Strix A WIFI D4

Z690 Strix A WIFI

Z690 Strix I

Z690 Creator

Z690 Prime A

Z690 Tuf

Z690 Tuf D4

Z690 Tuf WIFI

Z690 Tuf D4 WIFI

---------------------------------------------------------------------------------------------

Z790 Extreme

Z790 Hero

Z790 Apex

Z790 Strix I

Z790 Strix F

Z790 Strix E

Z790 Strix A D4

Z790 Strix A

Z790 ProArt

Z790 Strix H

Z790 Prime A WIFI

Z790 Prime M Plus D4

Z790 Prime P

Z790 Prime P D4

Z790 Prime P WIFI

Z790 Prime P WIFI D4

----------------------------------------------------------------------------------------

Latest ocpak

Turbovcore
https://www.dropbox.com/s/ifsr8x0zncxcvyd/TurboV_Core_1.10.20.zip?dl=0


----------------------------------------------------------------------------------------

312,004 Views
749 REPLIES 749

Hopper64
Level 15
What’s the problem with using an apostrophe with this website? I don’t get it.
MZ790AE Bios 1602, GSkill F5-8400J4052G24GX2-TR5S, 14900KS, EKWB D5 TBE 300, Seasonic Prime TX-1600 ATX 3.0, Asus Strix 4090 w/ HK block, Phanteks Enthoo Elite, Asus Claymore 2, Asus Gladius 3, Asus XG349C, Crucial T705, Windows 11 Pro

My Friend

Any significant changes in Z690-FORMULA BETA BIOS 2201??

TZero wrote:
My Friend

Any significant changes in Z690-FORMULA BETA BIOS 2201??


many , it matches the 0801 on z790

Shamino wrote:
many , it matches the 0801 on z790


Thank you my friend !
:rolleyes: :cool:

First test with the Beta Bios 2201 I can say that it promises.
I'm testing various scenarios and it seems pretty smooth.

I got the same issue with my z690 formula even after following all the steps listed its still not working

My second m.2 just won't work

Motherboard: Z690 Maximus Formula
CPU: 13900K
M.2_1: NVME GEN 4 2TB
M.2_3: NVME GEN 4 2TB
GPU: 4090

My setup cannot pass 7-Zip Benchmark Test if frequency at 5500MHz or above, it crashed almost instantly. I need to set SVID behaviour to Intel Fail Safe to make it pass. My setup is Z790-I with BIOS 805 obtained from this thread, 13900K, AIO Cooling, Corsair DDR5 5600, TUF RTX3080Ti, Corsair SF750 PSU. How do I optimise the settings?

(Sorry if I posted to a wrong place)Â*

pauliu wrote:
My setup cannot pass 7-Zip Benchmark Test if frequency at 5500MHz or above, it crashed almost instantly. I need to set SVID behaviour to Intel Fail Safe to make it pass. My setup is Z790-I with BIOS 805 obtained from this thread, 13900K, AIO Cooling, Corsair DDR5 5600, TUF RTX3080Ti, Corsair SF750 PSU. How do I optimise the settings?

(Sorry if I posted to a wrong place)Â*


Have almost the same config - z790 hero + 13900k but trident z 6000 RAM and custom water loop (with 3090ti in the same loop). Using 0031 bios (prior to 080x bios) - to stabilize, I'd remove adaptive CPU power, as Silent Scone@ROG recommends - I'd increase VCCSA and IMC voltages as well as both VDD and VDDQ over recommended. It's working stable now, but CPU pretty often reaches 100*C and drops back to 70, then increase to 85-95, staying there for some time and again reaching 100. Don't sure, but temps look veeery unstable (0805 gives me even more temp during undervolting, I didn't try after voltage increasing), but at least I don't see any bluescreens now.

bscool
Level 11

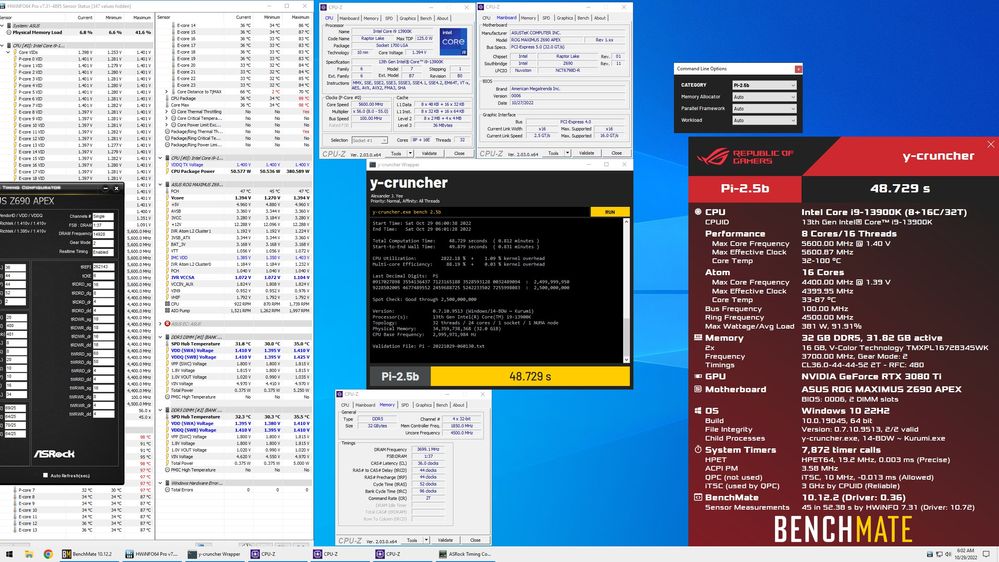

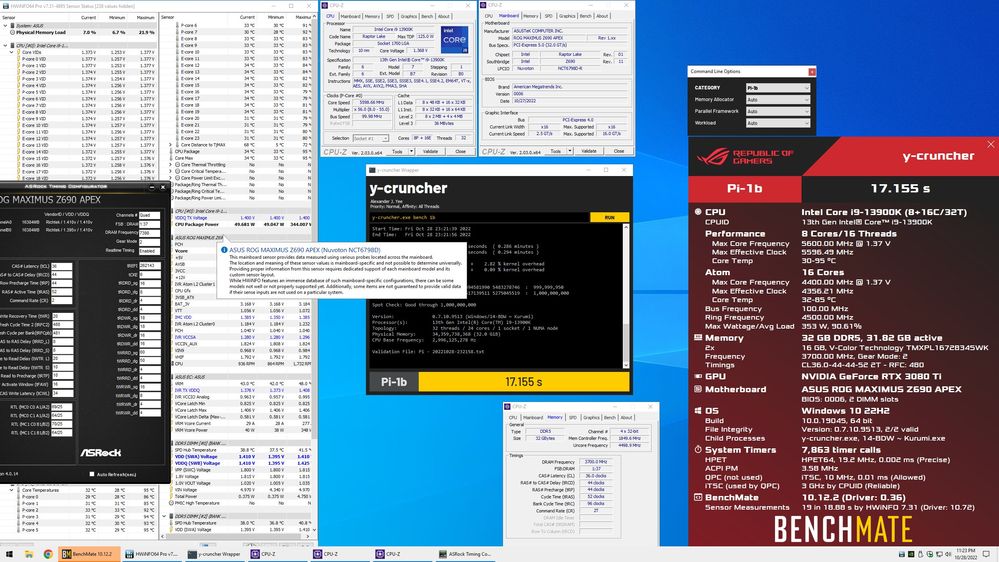

2022 z690 Apex bios 0006
13900k Arctic 420 AIO
v color 7200 A die (no cooling or fan on ram for this testing)


Just some quick testing, this is the best so far for me with these A die. Other bioses it was difficult booting 7200 or lower and wouldnt run y cruncher or Karhu/memest.


0006 boots and is stable with 7200 XMP 1 and also with the "7600 preset timings" settings at 7200.


Also 7400 ran y cruncher with same settings for timings and voltages.


Didnt test with M die yet.

95951 95957

speed_fastest
Level 7
Wow, Z690 Apex BIOS is perfected already, really great on my board too! Thanks @Shamino!

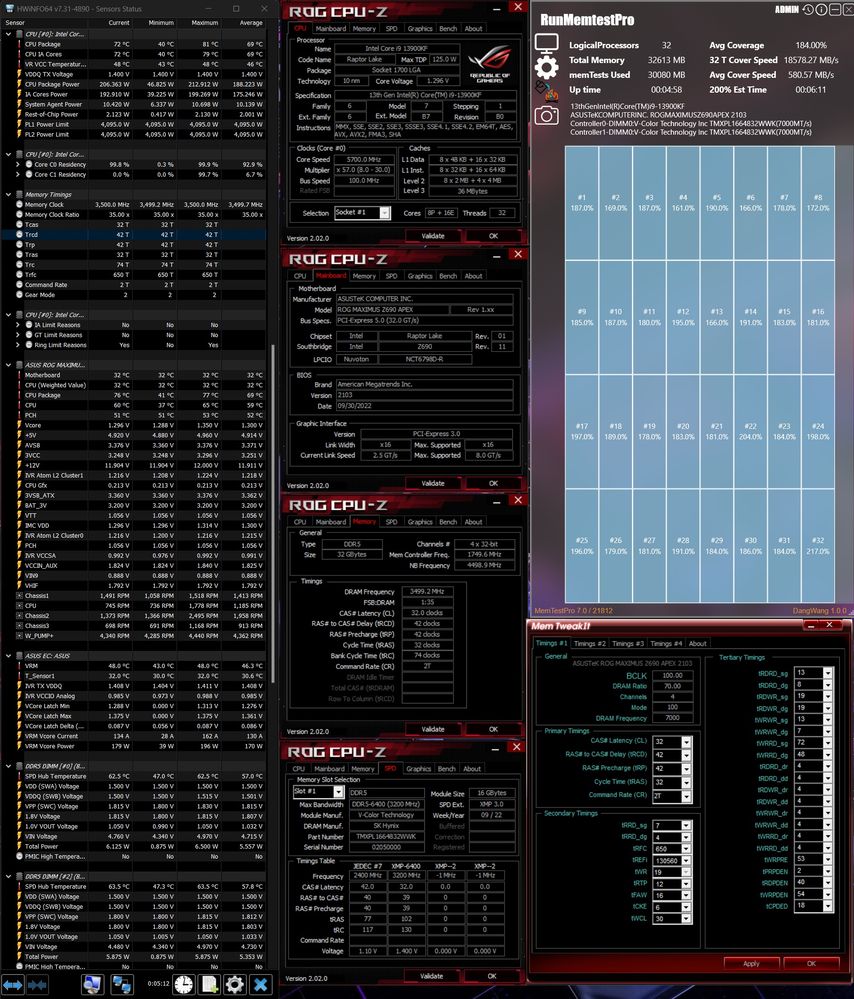

V-Color Manta RGB 6400 C32 running DDR5-7000 memtest, memory on air!
95953

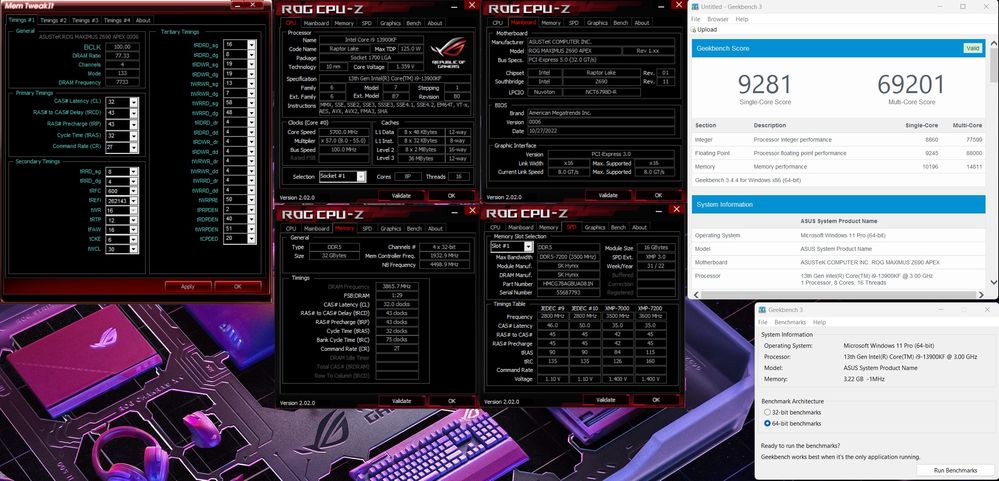

Generic Hynix A-Die running Geekbench 3 at DDR5-7733 32-43-43 Very Tight also!
95954

Silent_Scone
Super Moderator

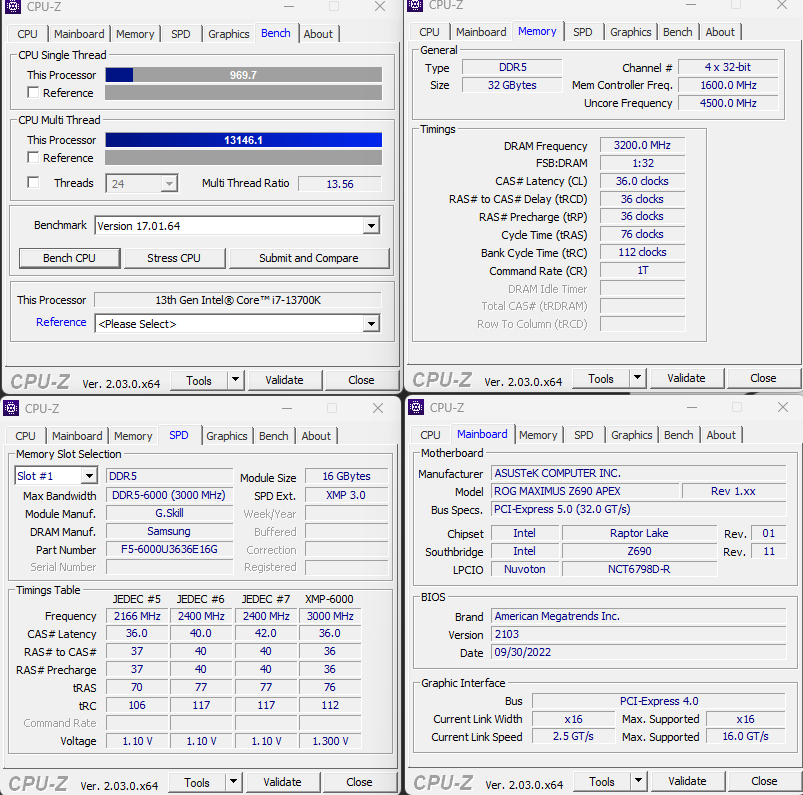

Z690 APEX

13700K @ 5.6 / 4.2 all core 1.33v

uncore 4.5

95959

Samsung C36 6000 @ 6400 1T no tuning required. IMC much stronger on 13th gen
13900KS / 8000 CAS36 / ROG APEX Z790 / ROG TUF RTX 4090
