Maximus Z690 and Alder Lake: Modern CPU’s require Modern Overclocking Solutions

Falkentyne
Level 12
Asus Z690, Maximus series and Alder Lake: The best tools for the best FPS.

First, let me start by thanking Shamino @ ROG Asus for allowing me and the other testers to put this exciting new hardware through its paces and experiment with the new overclocking features and architecture changes, and for the hard work to get these boards running well with these new features.

Also I need to thank cstkl1 and RobertoSampiao for helping me write this. Without their help, I would never have been able to do this.
And VERY BIG thank you to Skatterbencher for his excellent, precise, clear cut youtube videos on explaining these features and helping me with this guide.

Disclaimer ! These settings and methods were tested on *ENGINEERING* Qualification Sample CPU's ("QS") and
pre-production boards, so it is possible that some features may perform differently, slightly differently
identically, or even not work at all on retail CPU's. While QS samples tend to reflect final retail hardware, there may still be undocumented differences, errata, thermal issues or features that may be present or not present on retail parts.

AVX-512 support is available with Asus boards! Some of you may really love this but I am not sure if AVX512 was intended or QA'd by Intel, VRM limits may not be set for high OCP limits with AVX512. I encountered OCP with AVX512 at 5.2 ghz, so if you encounter it, you can change CPU Current Capacity in Digi+VRM.

To use AVX-512, please disable all of the E-cores. The AVX512 offsets and clipping are available just like they were and described in the Rocket Lake Z590 guide.

*MEMORY STUFF and DDR5*

DDR5 operates in 2x32 bit mode rather than 1x64 bit mode. Power management (PMIC) has also been moved from the motherboard to the memory, so the memory itself manages the voltages.

The new changes to the bank structure means that two sticks of DDR5 are operating in the equivalent of "Quad channel" mode when compared to DDR4. DDR4 and DDR5 memory should no longer be compared on an apples to apples level due to the number of changes.
There are two channels per dimm and two memory controllers on the DDR5 side so the dims operate in quad channel mode for 2 sticks. CAS latency seems to have a lesser effect on latency on DDR5 than 4, for example. Max Trefi can go up to 262k, but there is no noticeable benefit from going higher than 65535, and a lot of risk of increasing stability problems with high heat. TRCD/TRP can now be set separately, focus on these for your overclocks, as well as the subs.

Yeeted tREFI may also risk an instant BSOD when you stop a stress test when the memory heats up or when you use sleep mode.
PMIC defaults to 1.10v for VDD and VDDQ. Some memory modules may want up to 50m-100mv higher VDDQ than VDD when overclocking. A "high voltage" mode allows higher than 1.43v, however this is an actual register toggle within the memory itself. Some modules are not compatible with this register, so enabling it will just reset the voltage back to default, or prevent booting at all. More accurately it uses a target voltage based on 10mv resolution calculation rather than 5mv, which means the real voltage will be much lower than what you think you set, if you are using incompatible sticks.

PMIC voltages's are usually synched together per channel but can be set separately both per channel AND per Dimm. There are three switching rails, VDD, VDDQ and VPP. VCCSA (System Agent) is still there. I have been unable to test changing this as my Micron sticks do not go much higher than 5200 XMP (5600 did work with a lot of difficulty).

Power rails have been simplified on the motherboard. There are two master rails, VCCIA and VCCAUX (sorry I don’t remember the exact names). IA rail controls Vcore and vGPU. AUX rail controls everything else (SA, FIVR, etc).
PMIC is on the memory which controls the voltage the memory actually runs at (VDDQ, VDD etc).
This is sourced from the motherboard’s 5V supply. As mentioned above, some modules have a high voltage bit which can allow more than 1.435v.

Secure Pmic mode: cannot be adjusted in windows. Allows up to 1.435v. Compatible with all 5mv resolution
OC Pmic: can be adjusted in windows. Can set yeet volts up to 2.070v. 10mv resolution

===================

Some values available in BIOS and should you care:

SPD Hub VLDO (1.8v): Don’t bother
SPD Hub (VDDIO) (1.0v): Don’t bother
Memory VDD voltage (definitely use it. 1.25v+ is good for OC)
Memory VDDQ voltage (1.2.5v+ is good for OC)
Memory VDDP voltage: Don’t bother.
Memory switching freq: not much help.
Memory current capacity: not really needed
System Agent: 1.25v+ (ask cstkl1 about this, there seem to be some issues with high system agent and some memory settings
Memory controller voltage (external): 1.25v+ for OC
Transmitter VDDQ (max to any high limit VDD, VDDQ).

So tl;dr: concern yourself with vdd, vddq, VCCSA, MC VDD, TX VDDQ.

===========
ROG Shamino’s rule of memory voltages:
===========

Typically the higher the density, the lower the V tolerance, eg, V for 4*DR< V for 2*DR
Micron sticks:
SR modules typically can scale with VDDQ>1.35v while VDD may fail training >1.35v. So you may end up running something like 1.35v VDD + 1.435v VDDQ. SR module also like VDDQ to be ~ 50++mv-100mv higher than VDD so try to OV them asynch.

DR modules may have less V tolerance, so something like 1.25v VDD + 1.35v VDDQ will be what you end up maxing out at.
Some micron sticks may end up MORE stable fully loaded than idle. Be careful about idle BSOD’s. This may get worse if you start yeeting tREFI and end up BSOD’ing at the very end of a stress test.

1T Command rate will NOT work.

Hynix sticks:
SR modules typically can scale with VDD>1.3v while VDDQ may not need much over 1.25v. So you may end up running something like 1.35v VDDQ + 1.25v VDDQ. (inverse from what you see on micron) Similar for DR modules.
1.25v MC VDD works well for them. 1T command rate works with these.

Samsung Sticks:
Yes. Don’t need to say more.
Some modules do not like >1.25v Memory controller VDD, while some need it to scale for high frequencies.
You also need to scale the TX VDDQ according to VDD/VDDQ levels. A rule of thumb is to set it to the highest of either your VDD or VDDQ but try to not exceed 1.6v. Sometimes the FIVR rail will trip on you if you do.

Shamino’s rule:

For starters, you can just run 1.25v on both VDD and VDDQ for Hynix, 1.25VDD+1.35VDDQ for Micron, and 1.35VDD+1.35VDDQ for Samsung and let the BIOS decide on the rest for you by leaving them auto. You may also want to start with Asus Memory Presets.

Another strategy worth trying is:
Synch DRAM VDD with MC VDD, Synch TX VDDQ with DRAM VDDQ.
Default Gear mode for DDR5 is Gear 2 (Gear 1 will not work), with POR for 1 dimm per controller being 4800 mhz and 2 dimms per controller being 4000 mhz. The default base to clock ratio for DDR5 is 100:100, and unlike Rocket Lake, the 100:100 and 100:133 ratios seem to perform pretty well.

For the three gear modes (1/2/4), gear 2 requires that the dram ratio be divisible by 2, while gear 4 requires a divider of 4. So 4800 at 100:100 is fine. But 4900 is *NOT* since it’s not dividable by 2 or 4.
Gear 4 may only be worth using at 8000 mhz +.
DRAM Timings:

Use even numbers for TCL and TWCL, odd numbers don’t work.
TRP and TRCD can be individually adjusted. For questions about memory OC please ask cstkl1. I can’t help with memory OC.

Rough Description at Gear2:
Fmax VDD VDDQ TXVDDQ MC VDD SA Able to run CMD Rate 1T
2* Hynix SR 5800 1.3 1.25 1.25 1.25 1.25 yes
4* Hynix SR 5200 1.2 1.2 1.2 1.2 1.25 no
2* Hynix DR 5400 1.3 1.25 1.25 1.25 1.25 no
4* Hynix SR 4200 1.2 1.2 1.2 1.2 1.35 no
2* Micron SR 5600 1.35 1.4 1.4 1.34 1.2 no
4* Micron SR 5200 1.25 1.25 1.25 1.25 1.25 no
2* Micron DR 5400 1.25 1.25 1.25 1.25 1.2 no
4* Micron DR 4200 1.2 1.2 1.2 1.2 1.35 no
2* Samsung SR 5800 1.435 1.435 1.435 1.34 1.25 yes
4* Samsung SR 5200 1.35 1.35 1.35 1.25 1.25 no

You can definitely get 6000 and beyond, depending on lottery+ running with Hynix or Samsung but mem test stability depends on the IC quality. Watch your memory cooling at higher volts!

Next section: CPU Core OC
327,355 Views
211 REPLIES 211

Hi Guys, I

read the guide with DDR5 overclocking and tried everything that works.
The memory has an XMP profile with 6400 MHz. 6600 MHz works, but I can't go any further.

At 6800 MHz is the end.

I tried the following:
VDD to 1.30v VDDQ to 1.25 v SAT at 1.25
Can you help with that?

About my system:
MB: ASUS Maximus Extreme, LGA1700, BIOS version 1401
CPU: INTEL Core i9 – 12900K
RAM: G.Skill (SK Hynix) F5-6400J3239G16G 2x 16GB DDR5 RAM
GPU: nvidia RTX 30990

rog_chris83 wrote:
Hi Guys, I

read the guide with DDR5 overclocking and tried everything that works.
The memory has an XMP profile with 6400 MHz. 6600 MHz works, but I can't go any further.

At 6800 MHz is the end.

I tried the following:
VDD to 1.30v VDDQ to 1.25 v SAT at 1.25
Can you help with that?

About my system:
MB: ASUS Maximus Extreme, LGA1700, BIOS version 1401
CPU: INTEL Core i9 – 12900K
RAM: G.Skill (SK Hynix) F5-6400J3239G16G 2x 16GB DDR5 RAM
GPU: nvidia RTX 30990



Very much a how long is a piece of string question. Depends on a multitude of things, not least of all the CPU IMC strength.


Try these values for 6800, assuming you're using the Apex.

(Samsung IC, however)


92976
13900KS / 8000 CAS36 / ROG APEX Z790 / ROG TUF RTX 4090

Any recommendations for successful XMP on the new G.Skill 6600 (F5-6600J3440G16GX2-TZ5RK)? I've tried repeatedly with various voltage settings, ala what was profiled in the OP, namely vdd, vddq, VCCSA, MC VDD, TX VDDQ to get it to run reliably on XMP but no go. My G.Skill 5600 CL36 runs error free and rock solid on my Extreme with these settings, 1.25v with VCCSA on Auto.

jking63 wrote:
Any recommendations for successful XMP on the new G.Skill 6600 (F5-6600J3440G16GX2-TZ5RK)? I've tried repeatedly with various voltage settings, ala what was profiled in the OP, namely vdd, vddq, VCCSA, MC VDD, TX VDDQ to get it to run reliably on XMP but no go. My G.Skill 5600 CL36 runs error free and rock solid on my Extreme with these settings, 1.25v with VCCSA on Auto.



Hello,

The Extreme is only validated up to 6400MT, you may have to accept that 6600 is unobtainable. Tune for 6000-6400 where possible.
13900KS / 8000 CAS36 / ROG APEX Z790 / ROG TUF RTX 4090

Silent Scone@ROG wrote:
Hello,

The Extreme is only validated up to 6400MT, you may have to accept that 6600 is unobtainable. Tune for 6000-6400 where possible.
Thank you Silent Scone, I find it a bit odd that G.Skill has it on their QVL, however I broke from my usual tradition in checking with board manufacturer first on this. In your opinion, will this be rectified with further BIOS maturation? I built my rig mainly for gaming and chose the Extreme in part for it's connector layout and aesthetics as it pertained to my case wiring and very well may have gone for an Apex otherwise but I'm very pleased with the Extreme nonetheless. At this point, would you recommend the 6400 for it's XMP compatibility, though for gaming I'm of the opinion it won't offer up that much of a gain overall, perhaps I should consider clocking my 5600 to 6k and wait things out, again thank you for your response.

I'm running my 5600 1.25v on all of the following except VCCSA (@ Auto)
vdd, vddq, VCCSA, MC VDD, TX VDDQ

jking63 wrote:
Thank you Silent Scone, I find it a bit odd that G.Skill has it on their QVL, however I broke from my usual tradition in checking with board manufacturer first on this. In your opinion, will this be rectified with further BIOS maturation? I built my rig mainly for gaming and chose the Extreme in part for it's connector layout and aesthetics as it pertained to my case wiring and very well may have gone for an Apex otherwise but I'm very pleased with the Extreme nonetheless. At this point, would you recommend the 6400 for it's XMP compatibility, though for gaming I'm of the opinion it won't offer up that much of a gain overall, perhaps I should consider clocking my 5600 to 6k and wait things out, again thank you for your response.

I'm running my 5600 1.25v on all of the following except VCCSA (@ Auto)
vdd, vddq, VCCSA, MC VDD, TX VDDQ


Asus will not admit this but Z690 motherboards have way too much discrepancy with regards to memory stability and performance ceiling. I have been through 4 different Z690 Apex, 3 Z690-A D4 WIFI and 2 Z690 Hero motherboards. Using the same CPU and memory config, they were all different in terms of ram stability. 1 of them would not even boot to windows after trying 6 separate kits of RAM, all of which were listed on QVL and using default speeds. Z690 is by far the worst generation of motherboard Asus has ever made.

ykeyre wrote:
Asus will not admit this but Z690 motherboards have way too much discrepancy with regards to memory stability and performance ceiling. I have been through 4 different Z690 Apex, 3 Z690-A D4 WIFI and 2 Z690 Hero motherboards. Using the same CPU and memory config, they were all different in terms of ram stability. 1 of them would not even boot to windows after trying 6 separate kits of RAM, all of which were listed on QVL and using default speeds. Z690 is by far the worst generation of motherboard Asus has ever made.
I cannot disagree with this, but will say that memory manufacturers are at present outpacing BIOS releases where mobo makers are still dealing with a great many issues not least of which is memory stability, I just don't see any support for much higher speed ram for months yet sadly. I'm very fortunate with my Extreme, yes but I built it mainly for gaming with light overclocking atm via Asus AI. The G.Skill 5600 I've had running since last Dec is performing very well, stable in every benchmark and should Asus feel the need to give us even more for our expensive boards, I'd love to try some higher speed stuff.

jking63 wrote:
I cannot disagree with this, but will say that memory manufacturers are at present outpacing BIOS releases where mobo makers are still dealing with a great many issues not least of which is memory stability, I just don't see any support for much higher speed ram for months yet sadly. I'm very fortunate with my Extreme, yes but I built it mainly for gaming with light overclocking atm via Asus AI. The G.Skill 5600 I've had running since last Dec is performing very well, stable in every benchmark and should Asus feel the need to give us even more for our expensive boards, I'd love to try some higher speed stuff.




Unfortunately, simply because a kit is present on the QVL doesn't ensure stability, especially when aiming for the maximum validated ratio as some concessions often need to be made. This is why the boards are equipped with various Tweak Modes and the ever present ability to adjust memory subsets.

These things can take time and a methodical approach. Simply chopping out parts and hoping for some kind of circuit eureka isn't always going to help depending on ones expectations or experience.

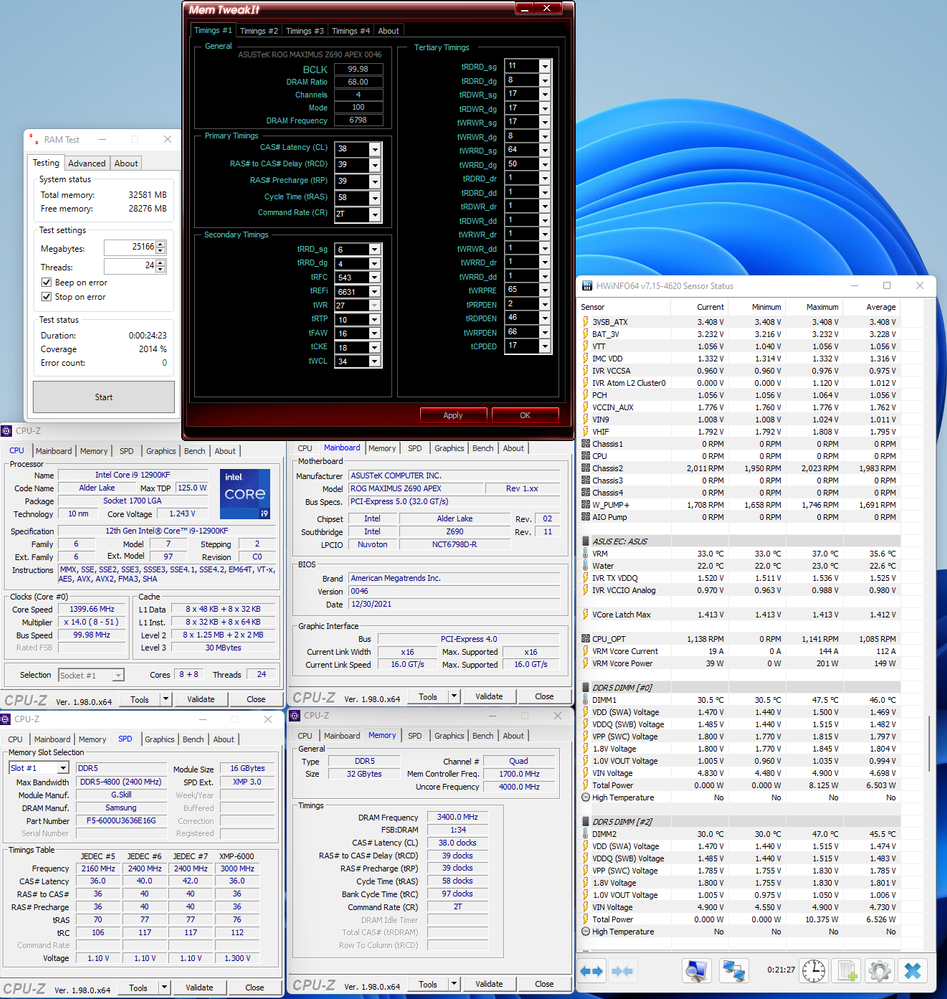

Here's 6800 working last year, this took me several hours to dial in the timings and voltages.

93166
13900KS / 8000 CAS36 / ROG APEX Z790 / ROG TUF RTX 4090

Silent Scone@ROG wrote:
Unfortunately, simply because a kit is present on the QVL doesn't ensure stability, especially when aiming for the maximum validated ratio as some concessions often need to be made. This is why the boards are equipped with various Tweak Modes and the ever present ability to adjust memory subsets.
These things can take time and a methodical approach. Simply chopping out parts and hoping for some kind of circuit eureka isn't always going to help depending on ones expectations or experience.
Here's 6800 working last year, this took me several hours to dial in the timings and voltages.

93166


I posted this in another thread but is applicable here also, Thanks for all the help you give to all of us.

"OK i finally got Teamgroup 6200 cl38 2x16 in a2 b2 thanks to Buildzoids video , passed bios memtest on my Asus z690 Extreme bios 1601 (pretty sure its a 2021 manufactured). 1720 doesnt allow for cpu undervolting , most think its a bug , since Asus has been quiet on the issue til now. See if your descriptions would be more descriptive your customers would know what to diagnose. The only thing i did different then buildzoid is not use xmp, i set manual in bios but used all his tweaks for memory.
Asus , when your customers have memory on your QVL , they should just work , when our setups match what your boards say they can do. I went thru 2 12900k and 2 12900ks cpus , thinking that its the cpus memory controllers. My 1st z690 extreme nuked itself with the Teamgroup 2x16 6200 cl38 on your QVL didnt boot at all with memory code errors, i even tried GSKILL 2x16 cl36. I then rma that board with place of purchase and bought extreme from microcenter , i have tried it with xmp1 xmp2 and also asus tweaked settings in bios for both sets then also tried the settings posted in the asus maximus oc pdf that that was on overclockers forum, and nothing got me stable ( memtest errors or a lot of game crashing) until i took buildzoids settings for his hynix 4x16 6000 settings for my TG 6200 cl38.
This isnt a rant but hopefully things will get better with your customers input. Your customers are loosing faith after the z690 Heros on fire 7 months time to recall debacle, then the z690 apex 2021s memory problems, and now still waiting on fix for memory that is on QVL to just work when using xmp1 and/or xmp2 and or Asus tweaked mem settings in bios.
Thanks for your time. I hope i explained this right."
12900ks sp 93
Asus z690 Extreme
Teamgroup 2x16 cl38 (w buildzoids mem tweaks)
Asus Thor 1200 psu
Evga 3090ti ftw3 ultra hybrid
Corsair 7000d case
Gigabyte FI32U monitor

Traumatik wrote:

Asus , when your customers have memory on your QVL , they should just work , when our setups match what your boards say they can do. I went thru 2 12900k and 2 12900ks cpus , thinking that its the cpus memory controllers




Unfortunately that's objectively incorrect. The QVL ensures the user purchases memory with the best possible chance of compatibility. There are no guarantees with overclocking, as it's always conditional. The further up the QVL you climb in frequency the less likely plug and play compatibility is found.
13900KS / 8000 CAS36 / ROG APEX Z790 / ROG TUF RTX 4090
