Missing A Drive

[timlab]

I have a z-590-e motherboard.  It has 4 slots for M.2 NVNe drives.  I have slot #1 (closes to the CPU) with an M2 drive.  In the PCEI slot next to it I have my graphics card.  The next M.2 drive is empty.  The next PCEi slot is empty.  The next M.2 drive has a placement for two M.2 drives which are filled.  I have 1 HHD (missing) and one CD Drive.  So why is this HHD missing?

How to fix?

[MrAgapiGC]

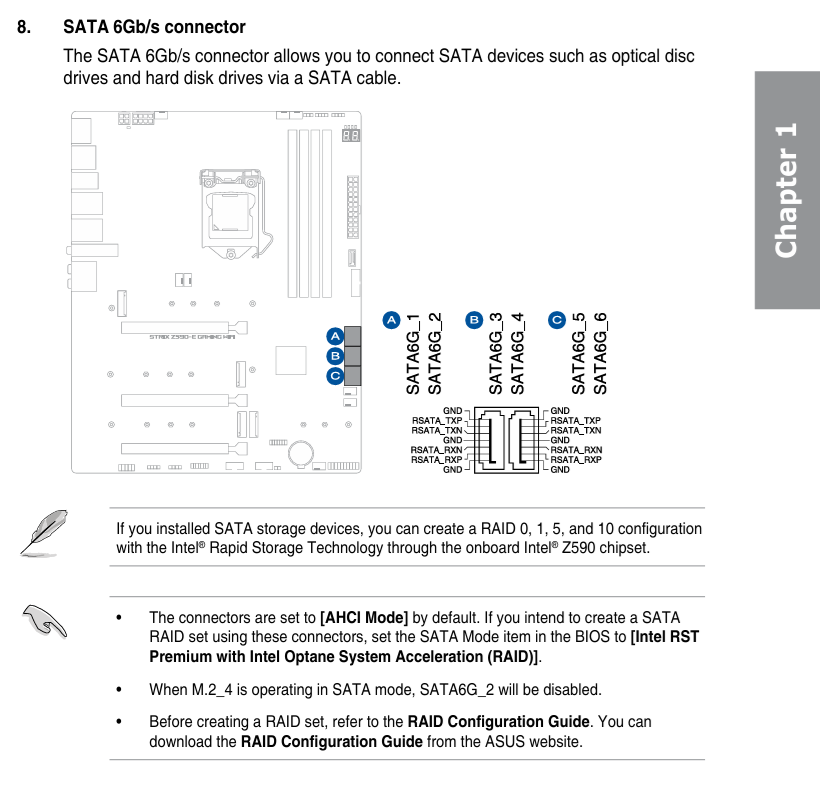

all info is on the manual. Also this change when 9th or 10th intel is on use.  but M2_4 is on use sata 2 is disable. use another sata

[Nate152]

Hello timlab

Depending on your configuration, sata ports 2, 5 and 6 could be disabled.

Try connecting your HDD to one of the middle sata ports 3 or 4 marked B.

If it still isn't showing, have you assigned a letter to your HDD with disk management?

[timlab · Accepted solution]

Found out it was a bad cable.  I found the drive now.  Thanks
