Asus Rog Ryuo install on Maximus XI Code

Gushy
Level 7
Hello

Merry Cristmas Eve to everyone.
I need your help guys i have a big problem.
I have Asus Rog Ryuo and Maximus XI Code,
Install everything by the manyal, but the pump does not start not glowing noting death,
Also i can't find where to plug in these cables from coolers simply cuz there is no such slot on the motherboard nor a have extention cable for it.

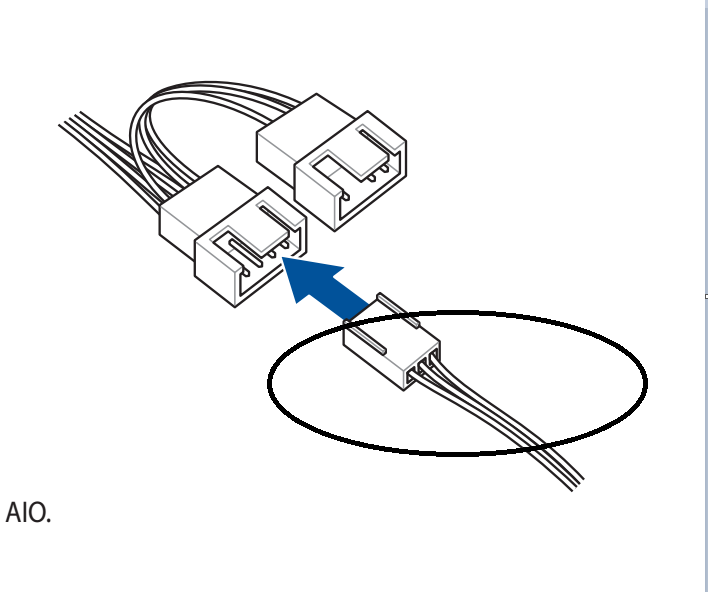

I will show you an example.
77785
https://gyazo.com/eeb10c2c082e0375b45a94c15ef8d847
The bottom cable i just do not have.
Please can someone help me solve this problem ?
At least advice with protos if possible ?
When the pc is started for the first time the cooler must show the ROG logo or need software first ?

Any advice is very welcome.
I just hope i will not wait again 2 month for an answer.

Thank you in advanced
1,314 Views
2 REPLIES 2

MorePower
Level 8
The fans from the radiator should connect to those connections. Make sure you have the SATA power connected to the PSU and the micro USB to the motherboard. Finally have the 4 pin connected to CPU_FAN or AIO_PUMP.

Gushy
Level 7
Thank you it work perfect 🙂
