RTAX86U - Mulple crash watchdog ucode everyday - Firmware Version:3.0.0.4.388_22525 - Mesh Mode

BeardedOldDude
Level 7

‎04-19-2023 09:37 AM

Here is an example below:
-----
Apr 19 11:12:48 kernel: wl0: PSMx dump at 649591 seconds. corerev 131 reason:watchdog ucode revision 1626.38205 features 0x3106
Apr 19 11:12:48 kernel: psmxdebug 0x00000318 pc_x 0x01ff001f macctl_x 0x80000403 maccmd_x 0x0
Apr 19 11:12:48 kernel: psmx_brc 0xa964 psmx_brc_1 0x0000 MX_UCODE_DBGST 0x2
Apr 19 11:12:48 kernel: PC (psmdebug_x):
Apr 19 11:12:48 kernel: 0x318 0x318 0x318 0x318
Apr 19 11:12:48 kernel: PC (psmdebug):
Apr 19 11:12:48 kernel: 0x1ff0023 0x1ff06ea 0x1930203 0x1ff005f
Apr 19 11:12:48 kernel: 0x1ff12c0 0x1ff12c0 0x1ff12c0 0x1ff12c0
Apr 19 11:12:48 kernel: PSMX_STACK_STATUS : 0x8202
Apr 19 11:12:48 kernel: PSMX_STACK_ENTRIES:
Apr 19 11:12:48 kernel: 0x1af8
Apr 19 11:12:48 kernel: 0x02db
Apr 19 11:12:48 kernel: 0x0318
Apr 19 11:12:48 kernel: 0x09cb
Apr 19 11:12:48 kernel: 0x001d
Apr 19 11:12:48 kernel: 0x1631
Apr 19 11:12:48 kernel: 0x1998
Apr 19 11:12:48 kernel: 0x24b9
Apr 19 11:12:48 kernel: txe_vasip_intsts 0x0
Apr 19 11:12:48 kernel: wl0: fatal error, reinitializing, total count of reinit's[68]
Apr 19 11:12:48 kernel: CSIMON: CSIMON[1.1.0] Initialization
Apr 19 11:12:48 kernel: CSIMON: M2M usr already registered ...
-----

Any ideas on the cause(s of this type of crash?
Thanks.

0 Kudos
1,436 Views
3 REPLIES 3

jzchen
Level 16

‎04-19-2023 08:46 PM - edited ‎04-19-2023 08:47 PM

I have this router as a node to my AXE16000.  I would love to help if I can.  I have been doing some digging online.  Do you have Target Wake Time enabled?  (Mine is disabled and I suggest trying it if it isn't already disabled).

0 Kudos

BeardedOldDude
Level 7

‎04-20-2023 08:24 AM - edited ‎04-20-2023 08:27 AM

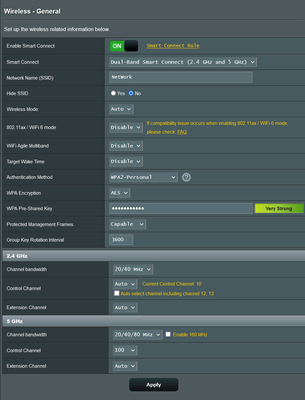

Thanks for helping. Target Wake Time is not enabled. Here is a copy of my Wireless settings


And the lastest crash in the System Log:
Apr 20 16:06:19 kernel: wl0: PSMx dump at 753185 seconds. corerev 131 reason:watchdog ucode revision 1626.38205 features 0x3106
Apr 20 16:06:19 kernel: psmxdebug 0x00000318 pc_x 0x01ff001f macctl_x 0x80000403 maccmd_x 0x0
Apr 20 16:06:19 kernel: psmx_brc 0xffff psmx_brc_1 0x0000 MX_UCODE_DBGST 0x2
Apr 20 16:06:19 kernel: PC (psmdebug_x):
Apr 20 16:06:19 kernel: 0x318 0x318 0x318 0x318
Apr 20 16:06:19 kernel: PC (psmdebug):
Apr 20 16:06:19 kernel: 0x1ff0023 0x1ff06e7 0x1fd01ff 0x1db1c04
Apr 20 16:06:19 kernel: 0x1ff0023 0x1ff06e6 0x1d901ff 0x1d9005b
Apr 20 16:06:19 kernel: PSMX_STACK_STATUS : 0x8202
Apr 20 16:06:19 kernel: PSMX_STACK_ENTRIES:
Apr 20 16:06:19 kernel: 0x1af8
Apr 20 16:06:19 kernel: 0x02db
Apr 20 16:06:19 kernel: 0x0318
Apr 20 16:06:19 kernel: 0x09cb
Apr 20 16:06:19 kernel: 0x001d
Apr 20 16:06:19 kernel: 0x1631
Apr 20 16:06:19 kernel: 0x1998
Apr 20 16:06:19 kernel: 0x24b9
Apr 20 16:06:19 kernel: txe_vasip_intsts 0x0
Apr 20 16:06:19 kernel: wl0: fatal error, reinitializing, total count of reinit's[85]
Apr 20 16:06:19 kernel: CSIMON: CSIMON[1.1.0] Initialization
Apr 20 16:06:19 kernel: CSIMON: M2M usr already registered ...

0 Kudos

jzchen
Level 16
In response to BeardedOldDude

‎04-20-2023 09:11 AM

To start how close is your nearest WiFi neighbor?  If close or you have passersby you may want to change "Network" to something more unique.  I was at the local shopping mall and my ASUS router app tried to connect to network "ASUS".  We don't want any unauthorized attempt to access your network.  The default includes the last two digits of the MAC to make it likely unique out of the box.

802.11ax/WiFi 6 mode switch to Enable

Authentication Method change to WPA2/WPA3 Personal

Under 2.4 GHz

check box Auto select channel including channel 12, 13

Under 5 GHz

Channel Bandwidth check box enable 160 MHz and select 20/40/80/160 MHz in the pull down.

Control Channel switch to Auto

What firmware version are you on?  I hope the latest 3.0.0.4.388_22525?  If not please update it...

Try these settings and please follow up...
