ROG CROSSHAIR X870E EXTREME PCIE 5.0

[laneymae19]

I'm currently running a ROG CROSSHAIR X870E EXTREME motherboard with a RTX 5090 gaming trio OC edition. When I run gpuz, it shows that my 5090 is running @16x3.0. I have updated my bios and set my lanes to gen5 but still doesn't run at full potential 16x5.0. Is there another setting I should check?

would appreciate any advice with this!

[Nate152]

Hello laneymae19

At idle, it seems normal to lower the pcie speed.

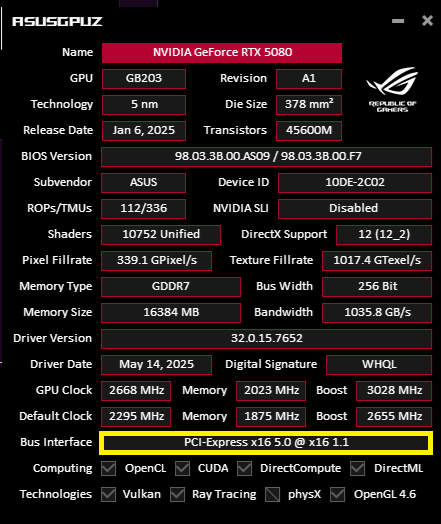

My ASUS Prime RTX 5080 shows pcie x16 1.1.

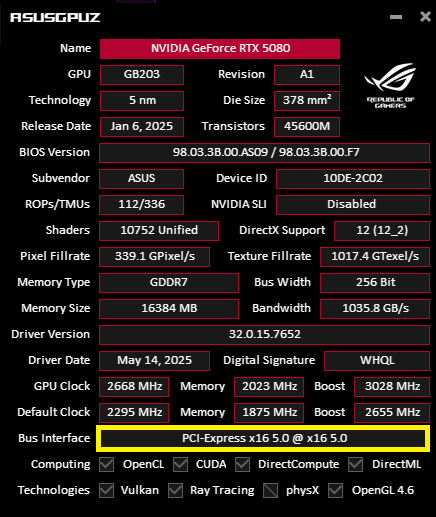

Play a game and it should ramp up to pcie x16 5.0.

[Silent_Scone · Accepted solution]

Hi @laneymae19

1. Are you using a riser cable?

2. Ensure the PCIE_Alt switch is in the correct position

[laneymae19]

The PCIE_Alt switch was it! I flipped it now i'm running at 16x5.0. thank you!!!!!!!
