ROG CROSSHAIR X670E EXTREME - Maximum RAM Speed

[Magnum_P_I_]

Hello,

what is the maximum RAM Speed that is supported for this motherboard? According to the manual page vii it is 6400+(OC):

ROG CROSSHAIR X670E EXTREME
specifications summary

Memory

4 x DIMM, Max. 128GB, DDR5 6400+(OC) / 6200(OC) / 6000(OC) /
5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 ECC and Non-ECC,
Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module
vary depending on the CPU and memory configuration, for more information
refer to www.asus.com for memory support list.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

According to the product description on the homepage it should be 8000+(OC):

Memory

4 x DIMM, Max. 192GB, DDR5
8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 ECC and Non-ECC,Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for
memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Which information is correct?

Thank you very much!

[Jiaszzz_ROG]

Hello @Magnum_P_I_

Thank you for your inquiry.
After further consultation, we have confirmed that the Memory specifications listed in the user manual reflect the original release of the motherboard.

For updates regarding BIOS and additional support, you can refer to the Memory specifications on the ROG CROSSHAIR X670E EXTREME Tech Specs on the official website.

Additionally, ASUS have verified the motherboard for optimal stability and compatibility when paired with devices listed in the CPU/Memory QVL.
Filtering by RAM speed on the ROG CROSSHAIR X670E EXTREME MEMROY QVL page, the results are as follows: (depends on installed CPU)

For more information about memory overclocking, we also recommend reviewing the "purchasing and installation guide" on the same page, as well as Memory Kits - Overclocking and What You May Not Know.

Thank you.

[Magnum_P_I_]

Thank you very much for your answer! Can you please verify what is meant under "additional support"

Thank you!

[TMavica]

8000 never stable , karhu / tm5 catch error at once, either zen 4/5. This 2 dpc limited, the only board you can do 8000 is Gene. Dont trust those advertisement, it wont true. You can found those people do 8000+  is in Gene, but not those Asus 2 dpc mobo, in 2 dpc board, booting never have problem, but non stable

[Silent_Scone]

Hello,

8K on 2DPC boards is indeed possible, but a good CPU is needed. As this is a substantial OC, there will be some hardware combinations that won't be able to achieve stability there, that's overclocking for you.

For the best chance of "plug and play" success, purchase memory kits further below the maximum validated ratio for the memory density you wish to run.

[TMavica]

Use a SAME CPU in Hero and Gene, 8000 unstable (Error once in TM5/Karhu) in Hero, 8000 stable in Gene, thats the finding

[Silent_Scone]

 We're talking about signalling. Different topology, more slots, vias. The CPU still plays a big part here...

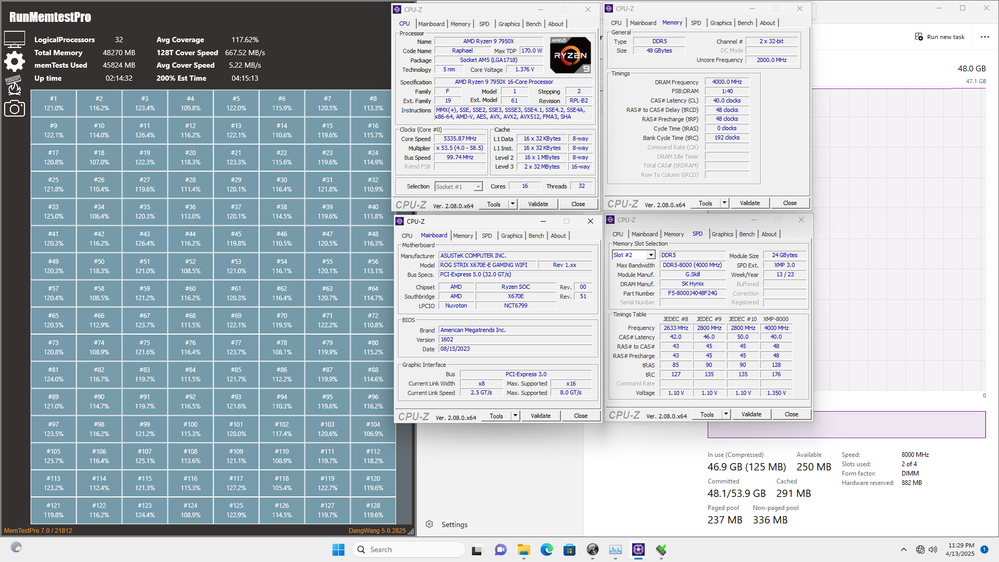

8000MT on Strix.

[Sherazi23]

Where to buy asus latest laptop?

[Magnum_P_I_]

My plan would be to use an R9 7950X3D CPU with the Crosshair Extreme board in combination with 2x32GB of Ram.
