[DRIVERS] Realtek Audio (AMD 3xx/4xx/5xx/6xx/8xx & Intel 2xx/3xx/4xx/5xx/6xx/7xx/8xx)

[MoKiChU]

Hi everyone,

- Realtek Audio Drivers (UAD - ASUS ROG RTK-Dolby) :

Drivers : 6.0.9757.1 WHQL [12/11/2024]

Dolby Extension Driver : 9.524.657.1 WHQL [23/05/2024]
Dolby HSA SoftwareComponent Driver : 3.30704.740.0 WHQL [02/09/2024]​

Download : Link

ASUS ROG Realtek|Dolby Atmos motherboards :

Install/Update Process :

CLEANUP

/!\ If you already had Realtek (HD) Audio Driver, Realtek Audio Control/Console, Dolby Access installed /!\
Uninstall them (Start > Settings > Apps) then restart your PC
Launch Driver Store Explorer > Check the boxes of all versions of drivers which .inf starts with (if you find them) :
a-volute | avolute | dax | dts | extrtxusb | hdx | realtek | rtdusbad
Check the box "Force Deletion" then click on the "Delete Driver(s)" button

INSTALL

Launch "Install.cmd" by right-click Run as admin > "Next" > The installer will ask you to restart your PC > "Finish"
Go in "Apps" folder > Install your apps from the Microsoft Store shortcuts

UPDATE

Launch "Update.cmd" by right-click Run as admin > Restart your PC when the command prompt window disappears
Launch Driver Store Explorer > Click on the "Select Old Driver(s)" button > Click on the "Delete Driver(s)" button

Note : Your apps will be updated automatically via the Microsoft Store.

- Realtek Audio Drivers (UAD - ASUS ROG SS3-DTS) :

Drivers : 6.0.9757.1 WHQL [12/11/2024]

SS3 Extension Driver : 1.4.0.0 WHQL [17/04/2023]
SS3 AudioProcessingObject Driver : 3.7.2.0 WHQL [20/06/2024]
DTS APO4x Extension Driver : 1.14.1.0 WHQL [22/05/2024]​

Download : Link

ASUS ROG SS3 & SS3|DTS Sound Unbound motherboards :

Install/Update Process :

CLEANUP

/!\ If you already had Realtek (HD) Audio Driver, Realtek Audio Control/Console, Sonic Studio/Radar III, DTS Sound Unbound installed /!\
Uninstall them (Start > Settings > Apps) then restart your PC
Launch Driver Store Explorer > Check the boxes of all versions of drivers which .inf starts with (if you find them) :
a-volute | avolute | dax | dts | extrtxusb | hdx | realtek | rtdusbad
Check the box "Force Deletion" then click on the "Delete Driver(s)" button
Launch SS3 Cleaner by right-click Run as admin
Press Windows key + X > "Device Manager" > "View" > Check "Show hidden devices" > "Sofware components" category
Uninstall these hidden devices by right-click Uninstall device (if you find them) then restart your PC :
DTS Audio Effects Component | DTS APO4x Service Component

INSTALL

Launch "Install.cmd" by right-click Run as admin > "Next" > The installer will ask you to restart your PC > "Finish"
Go in "Apps" folder > Install your apps from the Microsoft Store shortcuts
Update your SS3 apps : Sonic Studio III v3.16.24.0 | Sonic Radar III v3.16.24.0

UPDATE

Launch "Update.cmd" by right-click Run as admin > Restart your PC when the command prompt window disappears
Launch Driver Store Explorer > Click on the "Select Old Driver(s)" button > Click on the "Delete Driver(s)" button

Note : Your apps will be updated automatically via the Microsoft Store.

- Realtek Audio Drivers (UAD - ASUS ROG/TUF/PRIME/ProArt RTK) :

Drivers : 6.0.9757.1 WHQL [12/11/2024]

Download : Link

ASUS ROG/TUF/PRIME/ProArt Realtek motherboards :

Install/Update Process :

CLEANUP

/!\ If you already had Realtek (HD) Audio Driver, Realtek Audio Control/Console installed /!\
Uninstall them (Start > Settings > Apps) then restart your PC
Launch Driver Store Explorer > Check the boxes of all versions of drivers which .inf starts with (if you find them) :
a-volute | avolute | dax | dts | extrtxusb | hdx | realtek | rtdusbad
Check the box "Force Deletion" then click on the "Delete Driver(s)" button then restart your PC

INSTALL

Launch "Install.cmd" by right-click Run as admin > "Next" > The installer will ask you to restart your PC > "Finish"
Go in "Apps" folder > Install your app from the Microsoft Store shortcut

UPDATE

Launch "Update.cmd" by right-click Run as admin > Restart your PC when the command prompt window disappears
Launch Driver Store Explorer > Click on the "Select Old Driver(s)" button > Click on the "Delete Driver(s)" button

Note : Your apps will be updated automatically via the Microsoft Store.

- Realtek Audio Drivers (UAD - ASUS TUF/PRIME DTSX Ultra) :

Drivers : 6.0.9757.1 WHQL [12/11/2024]

DTS APO4x Extension Driver : 1.14.1.0 WHQL [22/05/2024]
DTS APO4x Service SoftwareComponent Driver : 1.14.19.0 WHQL [04/09/2024]
DTS APO4x Core AudioProcessingObject|SoftwareDevice Driver : 1.14.11.0 WHQL [22/08/2024]
DTSX Ultra HSA SoftwareComponent Driver : 1.11.6.0 WHQL [30/04/2024]​

Download : Link

- Realtek Audio Drivers (UAD - ASUS TUF/PRIME DTS AP) :

Drivers : 6.0.9757.1 WHQL [12/11/2024]

DTS APO4x Extension Driver : 1.14.1.0 WHQL [22/05/2024]
DTS AP APO4x Extension Driver : 1.14.1.0 WHQL [22/05/2024]
DTS APO4x Service SoftwareComponent Driver : 1.14.19.0 WHQL [04/09/2024]
DTS APO4x Core AudioProcessingObject|SoftwareDevice Driver : 1.14.11.0 WHQL [22/08/2024]
DTS AP HSA SoftwareComponent Driver : 1.10.6.0 WHQL [30/04/2024]​

Download : Link

ASUS TUF/PRIME DTS:X Ultra & DTS Audio Processing motherboards :

Install/Update Process :

CLEANUP

/!\ If you already had Realtek (HD) Audio Driver, Realtek Audio Control/Console, DTS:X Ultra or DTS Audio Processing installed /!\
Uninstall them (Start > Settings > Apps) then restart your PC
Launch Driver Store Explorer > Check the boxes of all versions of drivers which .inf starts with (if you find them) :
a-volute | avolute | dax | dts | extrtxusb | hdx | realtek | rtdusbad
Check the box "Force Deletion" then click on the "Delete Driver(s)" button then restart your PC

INSTALL

Launch "Install.cmd" by right-click Run as admin > "Next" > The installer will ask you to restart your PC > "Finish"
Go in "Apps" folder > Install your apps from the Microsoft Store shortcuts

UPDATE

Launch "Update.cmd" by right-click Run as admin > Restart your PC when the command prompt window disappears
Launch Driver Store Explorer > Click on the "Select Old Driver(s)" button > Click on the "Delete Driver(s)" button

Note : Your apps will be updated automatically via the Microsoft Store.

- Realtek Audio Drivers (UAD - ASUS TUF/PRIME DTS HPXv1) :

Drivers : 6.0.9757.1 WHQL [12/11/2024]

DTS HPXv1 APO3x Extension Driver : 1.1.1.0 WHQL [03/09/2019]
DTS APO3x Core SoftwareComponent|SoftwareDevice Driver : 1.2.0.0 WHQL [04/07/2020]
DTS HPXv1 HSA SoftwareComponent Driver : 2.1.0.0 WHQL [03/09/2019]​

Download : Link

- Realtek Audio Drivers (UAD - ASUS TUF/PRIME DTS Custom) :

Drivers : 6.0.9757.1 WHQL [12/11/2024]

DTS Custom APO3x Extension Driver : 1.2.2.0 WHQL [07/12/2020]
DTS APO3x Core SoftwareComponent|SoftwareDevice Driver : 1.2.0.0 WHQL [04/07/2020]
DTS Custom HSA SoftwareComponent Driver : 2.1.2.0 WHQL [08/07/2020]​

Download : Link

ASUS TUF/PRIME DTS Headphone:X v1 & DTS Custom motherboards :

Install/Update Process :

CLEANUP

/!\ If you already had Realtek (HD) Audio Driver, Realtek Audio Control/Console, DTS Headphone:X v1 or DTS Custom installed /!\
Uninstall them (Start > Settings > Apps) then restart your PC
Launch Driver Store Explorer > Check the boxes of all versions of drivers which .inf starts with (if you find them) :
a-volute | avolute | dax | dts | extrtxusb | hdx | realtek | rtdusbad
Check the box "Force Deletion" then click on the "Delete Driver(s)" button then restart your PC

INSTALL

Launch "Install.cmd" by right-click Run as admin > "Next" > The installer will ask you to restart your PC > "Finish"
Go in "Apps" folder > Install your apps from the Microsoft Store shortcuts

UPDATE

Launch "Update.cmd" by right-click Run as admin > Restart your PC when the command prompt window disappears
Launch Driver Store Explorer > Click on the "Select Old Driver(s)" button > Click on the "Delete Driver(s)" button

Note : Your apps will be updated automatically via the Microsoft Store.

OS requirements : Windows 10 64 bit or more recent.
Hardware requirements (AMD) : ASUS ROG/TUF/PRIME/ProArt motherboards with AMD 3xx/4xx/5xx/6xx/8xx series chipsets (except ROG with ALC40xx).
Hardware requirements (Intel) : ASUS ROG/TUF/PRIME/ProArt motherboards with Intel 2xx/3xx/4xx/5xx/6xx/7xx/8xx series chipsets (except ROG with ALC40xx).

Note : In order to know which drivers package to use, match the audio specifications of your motherboard with the apps or ask me.

TIPS :

If you want to manage the drivers (remove old/unused drivers for example) that you have in your Windows DriverStore
Use Driver Store Explorer (Right click on "Rapr.exe" > Run as administrator).

If you want better interrupts delivery latency
Enable MSI (Message Signaled-based Interrupts) mode on all your supported devices (see the column "supported modes") with
MSI Mode Utility (Right click on "MSI_Mode_Utility_v3.exe" > Run as administrator).

If you experience crackling, popping, audio stutter
Disable hibernation (Fast Startup included).

[MoKiChU]

TMavica wrote:
Sorry. Forgot to mentiom, it is x670 extreme.

TMavica wrote:
Got it. Should be realtek audio usb

Hi,

You have an ASUS ROG SS3|DTS Sound Unbound motherboard with ALC408x codec, so :

You need Realtek USB Audio Drivers (UAD - ASUS ROG SS3-DTS) from the first post of this thread : [DRIVERS] Realtek USB Audio (Intel 5xx/6xx/7xx & AMD 5xx/6xx/TRX40).

Follow scrupulously your CLEANUP process then your INSTALL process, for the next drivers packages that I would release, you will can directly follow your UPDATE process.

oporopolist wrote:
Which package for a "TUF GAMING B560M-PLUS WIFI" please?

Hi,

You have an ASUS TUF DTS Custom motherboard, so :

You need Realtek Audio Drivers (UAD - ASUS TUF/PRIME DTS Custom) from the first post of this thread.

Follow scrupulously your CLEANUP process then your INSTALL process, for the next drivers packages that I would release, you will can directly follow your UPDATE process.

[BreitGeekkk]

Hi ;

Thank you for your work MoKiChU !

I have a Z690 Extreme with ALC40XX, which driver should I choose ?
I have bought both DTS Unbound and Dolby Access on Windows 11 store.

Kind regards.

Pierre

[MoKiChU]

BreitGeekkk wrote:
Hi ;

Thank you for your work MoKiChU !

I have a Z690 Extreme with ALC40XX, which driver should I choose ?
I have bought both DTS Unbound and Dolby Access on Windows 11 store.

Kind regards.

Pierre

Hi,

You have an ASUS ROG SS3|DTS Sound Unbound motherboard with ALC408x codec, so :

You need Realtek USB Audio Drivers (UAD - ASUS ROG SS3-DTS) from the first post of this thread : [DRIVERS] Realtek USB Audio (Intel 5xx/6xx/7xx & AMD 5xx/6xx/TRX40).

Follow scrupulously your CLEANUP process then your INSTALL process, for the next drivers packages that I would release, you will can directly follow your UPDATE process.

[DorCoMaNdO]

Hey, this was asked before by others but it seems that some replies are missing or were removed after the forum maintenance so I can't find the answer.
What drivers should I get for the x570 Dark Hero?

Also a bit of a different question - is there a fix for the Nahimic service causing severe system slowdowns (making most programs take 30+ seconds to open) that isn't just disabling the service? I've had this issue with my Z390 Gaming-F system as well, and there have been posts about it here and on Reddit for years reporting similar issues, is there perhaps a piece of software I'm missing that's causing the Nahimic service to hang, or is it really just that bad? (I'm also assuming it's injecting itself to every new process for the equalizer controls and w/e, followed by hanging for around 30 seconds which causes the process to hang)

[MoKiChU]

TMavica wrote:
Sorry. Forgot to mentiom, it is x670 extreme.

TMavica wrote:
Got it. Should be realtek audio usb

BreitGeekkk wrote:
Hi ;

Thank you for your work MoKiChU !

I have a Z690 Extreme with ALC40XX, which driver should I choose ?
I have bought both DTS Unbound and Dolby Access on Windows 11 store.

Kind regards.

Pierre

Hi,

You are in the wrong thread.

You have an ASUS ROG SS3|DTS Sound Unbound motherboard with ALC408x codec, so :

You need Realtek USB Audio Drivers (UAD - ASUS ROG SS3-DTS) from the first post of this thread : [DRIVERS] Realtek USB Audio (Intel 5xx/6xx/7xx & AMD 5xx/6xx/TRX40).

Follow scrupulously your CLEANUP process then your INSTALL process, for the next drivers packages that I would release, you will can directly follow your UPDATE process.

oporopolist wrote:
Which package for a "TUF GAMING B560M-PLUS WIFI" please?

Hi,

You have an ASUS TUF DTS Custom motherboard, so :

You need Realtek Audio Drivers (UAD - ASUS TUF/PRIME DTS Custom) from the first post of this thread.

Follow scrupulously your CLEANUP process then your INSTALL process, for the next drivers packages that I would release, you will can directly follow your UPDATE process.

DorCoMaNdO wrote:
Hey, this was asked before by others but it seems that some replies are missing or were removed after the forum maintenance so I can't find the answer.
What drivers should I get for the x570 Dark Hero?

Also a bit of a different question - is there a fix for the Nahimic service causing severe system slowdowns (making most programs take 30+ seconds to open) that isn't just disabling the service? I've had this issue with my Z390 Gaming-F system as well, and there have been posts about it here and on Reddit for years reporting similar issues, is there perhaps a piece of software I'm missing that's causing the Nahimic service to hang, or is it really just that bad? (I'm also assuming it's injecting itself to every new process for the equalizer controls and w/e, followed by hanging for around 30 seconds which causes the process to hang)

Hi,

You have an ASUS ROG SS3|DTS Sound Unbound motherboard, so :

You need Realtek Audio Drivers (UAD - ASUS ROG SS3-DTS) from the first post of this thread.

- Follow scrupulously your CLEANUP process
- Use this SS3 Cleaner tool (Right click on "A-Volute_SS3_Cleanup.exe" > Run as administrator) then restart your PC
- Follow scrupulously your INSTALL process

For the next drivers packages that I would release, you will can directly follow your UPDATE process.

[BreitGeekkk]

Thank you so much !

[MoKiChU]

SprSkl wrote:
I still have a question: After pondering a while how to get 5.1 sound out, I wonder if I can do this using cable going from the Realtek on-board audio to the amplifier's coaxial input, likely connecting the other end to the line-out of the integrated audio, since it doesn't have RCA coaxial output. Is it safe to buy such a cable and expect 5.1 sound to work in movies?

Please refer to this FAQ : [Motherboard] Audio I/O connections setting and Audio 2, 4, 5.1 or 7.1-channel configuration.

Note : The audio content in 5.1/7.1 DTS/Dolby (compressed) will be played in Stereo and not decoded in 5.1/7.1 PCM, only the audio content in 5.1/7.1 PCM (uncompressed) will be played in 5.1/7.1 PCM. Only SS3 can upmix all audio content up to 7.1 PCM (or virtualize 5.1/7.1/3D audio content in Stereo/5.1/7.1) but SS3 need SS3 licence & SS3 hardware APO which are only built-in with ASUS ROG motherboards.

[SprSkl]

@MoKiChU Thanks again mate! It is likely then that I will buy the sound card below, which seems to be the cheapest card in my region that supports Dolby Digital and DTS. The amplifier is Yamaha HTR-6130, which doesn't have HDMI connectors at all, but I think it supports DTS, I have yet to confirm this. It is an old entry-level model from like ten years ago. Cheers!

https://my.creative.com/p/sound-blaster/sound-blaster-z-se

[Soccerchamp43]

I have a Z790 Hero and I'm attempting to install the drivers under the "ASUS ROG SS3|DTS Sound Unbound motherboards" section of the original post.

I'm following the directions exactly as stated and have no issues through the "CLEANUP" steps, nor the initial "INSTALL" step.

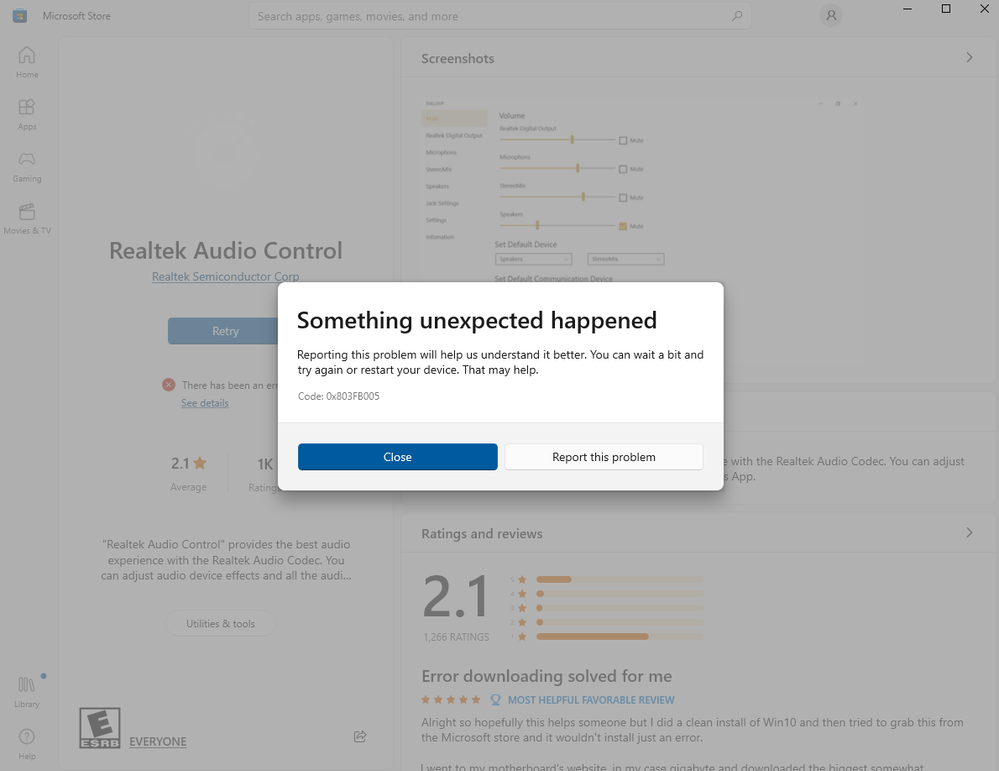

However, once I get to the "- Go in "Apps" folder > Install your apps from the Microsoft Store shortcuts : Realtek Audio Control/Console" step, I receive the following "Code: 0x803FB005" error:



From searching online, this appears to occur when incorrect audio drivers are installed.

Sonic Studio III and DTS Sound Unbound install from the MS Store, just not Realtek Audio Control.

Could anyone please advise on a solution? Did I install the wrong drivers for my motherboard?

Thank you!

[MoKiChU]

Soccerchamp43 wrote:
I have a Z790 Hero and I'm attempting to install the drivers under the "ASUS ROG SS3|DTS Sound Unbound motherboards" section of the original post.

I'm following the directions exactly as stated and have no issues through the "CLEANUP" steps, nor the initial "INSTALL" step.

However, once I get to the "- Go in "Apps" folder > Install your apps from the Microsoft Store shortcuts : Realtek Audio Control/Console" step, I receive the following "Code: 0x803FB005" error:



From searching online, this appears to occur when incorrect audio drivers are installed.

Sonic Studio III and DTS Sound Unbound install from the MS Store, just not Realtek Audio Control.

Could anyone please advise on a solution? Did I install the wrong drivers for my motherboard?

Thank you!

Hi,

You are in the wrong thread and you tried to install an incorrect drivers package for your motherboard.

I answered you in the correct thread : https://rog.asus.com/forum/showthread.php?118522-DRIVERS-Realtek-USB-Audio-(Intel-5xx-6xx-7xx-amp-AM....
