04-20-2020 07:08 AM - last edited Friday
Hi everyone,
- Realtek Audio Drivers (UAD - ASUS ROG RTK-Dolby) :
ASUS ROG Realtek|Dolby Atmos motherboards :
Install/Update Process :
CLEANUP
/!\ If you already had Realtek (HD) Audio Driver, Realtek Audio Control/Console, Dolby Access installed /!\
Uninstall them (Start > Settings > Apps) then restart your PC
Launch Driver Store Explorer > Check the boxes of all versions of drivers which .inf starts with (if you find them) :
a-volute | avolute | dax | dts | extrtxusb | hdx | realtek | rtdusbad
Check the box "Force Deletion" then click on the "Delete Driver(s)" button
INSTALL
Launch "Install.cmd" by right-click Run as admin > "Next" > The installer will ask you to restart your PC > "Finish"
Go in "Apps" folder > Install your apps from the Microsoft Store shortcuts
UPDATE
Launch "Update.cmd" by right-click Run as admin > Automatic restart when install is done
Launch Driver Store Explorer > Click on the "Select Old Driver(s)" button > Click on the "Delete Driver(s)" button
Note : Your apps will be updated automatically via the Microsoft Store.
- Realtek Audio Drivers (UAD - ASUS ROG SS3-DTS) :
ASUS ROG SS3 & SS3|DTS Sound Unbound motherboards :
Install/Update Process :
CLEANUP
/!\ If you already had Realtek (HD) Audio Driver, Realtek Audio Control/Console, Sonic Studio/Radar III, DTS Sound Unbound installed /!\
Uninstall them (Start > Settings > Apps) then restart your PC
Launch Driver Store Explorer > Check the boxes of all versions of drivers which .inf starts with (if you find them) :
a-volute | avolute | dax | dts | extrtxusb | hdx | realtek | rtdusbad
Check the box "Force Deletion" then click on the "Delete Driver(s)" button
Launch SS3 Cleaner by right-click Run as admin
Press Windows key + X > "Device Manager" > "View" > Check "Show hidden devices" > "Sofware components" category
Uninstall these hidden devices by right-click Uninstall device (if you find them) then restart your PC :
DTS Audio Effects Component | DTS APO4x Service Component
INSTALL
Launch "Install.cmd" by right-click Run as admin > "Next" > The installer will ask you to restart your PC > "Finish"
Go in "Apps" folder > Install your apps from the Microsoft Store shortcuts
Update your SS3 apps : Sonic Studio III v3.16.24.0 | Sonic Radar III v3.16.24.0
UPDATE
Launch "Update.cmd" by right-click Run as admin > Automatic restart when install is done
Launch Driver Store Explorer > Click on the "Select Old Driver(s)" button > Click on the "Delete Driver(s)" button
Note : Your apps will be updated automatically via the Microsoft Store.
- Realtek Audio Drivers (UAD - ASUS ROG/TUF/PRIME/ProArt RTK) :
ASUS ROG/TUF/PRIME/ProArt Realtek motherboards :
Install/Update Process :
CLEANUP
/!\ If you already had Realtek (HD) Audio Driver, Realtek Audio Control/Console installed /!\
Uninstall them (Start > Settings > Apps) then restart your PC
Launch Driver Store Explorer > Check the boxes of all versions of drivers which .inf starts with (if you find them) :
a-volute | avolute | dax | dts | extrtxusb | hdx | realtek | rtdusbad
Check the box "Force Deletion" then click on the "Delete Driver(s)" button then restart your PC
INSTALL
Launch "Install.cmd" by right-click Run as admin > "Next" > The installer will ask you to restart your PC > "Finish"
Go in "Apps" folder > Install your app from the Microsoft Store shortcut
UPDATE
Launch "Update.cmd" by right-click Run as admin > Automatic restart when install is done
Launch Driver Store Explorer > Click on the "Select Old Driver(s)" button > Click on the "Delete Driver(s)" button
Note : Your apps will be updated automatically via the Microsoft Store.
- Realtek Audio Drivers (UAD - ASUS TUF/PRIME DTSX Ultra) :
- Realtek Audio Drivers (UAD - ASUS TUF/PRIME DTS AP) :
ASUS TUF/PRIME DTS:X Ultra & DTS Audio Processing motherboards :
Install/Update Process :
CLEANUP
/!\ If you already had Realtek (HD) Audio Driver, Realtek Audio Control/Console, DTS:X Ultra or DTS Audio Processing installed /!\
Uninstall them (Start > Settings > Apps) then restart your PC
Launch Driver Store Explorer > Check the boxes of all versions of drivers which .inf starts with (if you find them) :
a-volute | avolute | dax | dts | extrtxusb | hdx | realtek | rtdusbad
Check the box "Force Deletion" then click on the "Delete Driver(s)" button then restart your PC
INSTALL
Launch "Install.cmd" by right-click Run as admin > "Next" > The installer will ask you to restart your PC > "Finish"
Go in "Apps" folder > Install your apps from the Microsoft Store shortcuts
UPDATE
Launch "Update.cmd" by right-click Run as admin > Automatic restart when install is done
Launch Driver Store Explorer > Click on the "Select Old Driver(s)" button > Click on the "Delete Driver(s)" button
Note : Your apps will be updated automatically via the Microsoft Store.
- Realtek Audio Drivers (UAD - ASUS TUF/PRIME DTS HPXv1) :
- Realtek Audio Drivers (UAD - ASUS TUF/PRIME DTS Custom) :
ASUS TUF/PRIME DTS Headphone:X v1 & DTS Custom motherboards :
Install/Update Process :
CLEANUP
/!\ If you already had Realtek (HD) Audio Driver, Realtek Audio Control/Console, DTS Headphone:X v1 or DTS Custom installed /!\
Uninstall them (Start > Settings > Apps) then restart your PC
Launch Driver Store Explorer > Check the boxes of all versions of drivers which .inf starts with (if you find them) :
a-volute | avolute | dax | dts | extrtxusb | hdx | realtek | rtdusbad
Check the box "Force Deletion" then click on the "Delete Driver(s)" button then restart your PC
INSTALL
Launch "Install.cmd" by right-click Run as admin > "Next" > The installer will ask you to restart your PC > "Finish"
Go in "Apps" folder > Install your apps from the Microsoft Store shortcuts
UPDATE
Launch "Update.cmd" by right-click Run as admin > Automatic restart when install is done
Launch Driver Store Explorer > Click on the "Select Old Driver(s)" button > Click on the "Delete Driver(s)" button
Note : Your apps will be updated automatically via the Microsoft Store.
OS requirements : Windows 10 64 bit or more recent.
Hardware requirements (AMD) : ASUS ROG/TUF/PRIME/ProArt motherboards with AMD 3xx/4xx/5xx/6xx/8xx series chipsets (except ROG with ALC40xx).
Hardware requirements (Intel) : ASUS ROG/TUF/PRIME/ProArt motherboards with Intel 2xx/3xx/4xx/5xx/6xx/7xx/8xx series chipsets (except ROG with ALC40xx).
Note : In order to know which drivers package to use, match the audio specifications of your motherboard with the apps or ask me.
TIPS :
If you want to manage the drivers (remove old/unused drivers for example) that you have in your Windows DriverStore
Use Driver Store Explorer (Right click on "Rapr.exe" > Run as administrator).
If you want better interrupts delivery latency
Enable MSI (Message Signaled-based Interrupts) mode on all your supported devices (see the column "supported modes") with
MSI Mode Utility (Right click on "MSI_Mode_Utility_v3.exe" > Run as administrator).
If you experience crackling, popping, audio stutter
Disable hibernation (Fast Startup included).
01-10-2023 08:40 AM
TMavica wrote:
Sorry. Forgot to mentiom, it is x670 extreme.
04-23-2021 05:06 AM - edited 01-27-2024 11:22 PM
gmruiz wrote:
Hello,
I have updated audio drivers for my MD: Asus Strix X570-E Gaming using the procedure.
Drivers installed correctly but now Sonic Studio III gaves me an error
And I cannot install Realtek Console from MS Store:
Any possible solution?
Thank you in advance /Goyo.
Hi,
You have an ASUS ROG SS3|DTS Sound Unbound motherboard, so :
You need Realtek Audio Drivers (UAD - ASUS ROG SS3-DTS MB) from the first post of this thread.
- Follow scrupulously your CLEANUP process
- Use this SS3 Cleaner tool (Right click on "A-Volute_SS3_Cleanup.exe" > Run as administrator) then restart your PC
- Follow scrupulously your INSTALL process.
For the next drivers packages that I would release, you will can directly follow the UPDATE process.
04-23-2021 06:00 AM
MoKiChU wrote:
Hi,
You have an ASUS ROG SS3|DTS Sound Unbound motherboard, so :
You need Realtek Audio Drivers (UAD - ASUS ROG SS3-DTS MB) from the first post of this thread.
Follow scrupulously your CLEANUP process then your INSTALL process, for the next drivers packages that I would release, you will can directly follow your UPDATE process.
Hi,
You have an ASUS ROG SS3|DTS Sound Unbound motherboard, so :
You need Realtek Audio Drivers (UAD - ASUS ROG SS3-DTS MB) from the first post of this thread.
- Follow scrupulously your CLEANUP process
- Use this SS3 Cleaner tool (Right click on "A-Volute_SS3_Cleanup.exe" > Run as administrator) then restart your PC
- Follow scrupulously your INSTALL process.
For the next drivers packages that I would release, you will can directly follow the UPDATE process.
04-23-2021 06:43 AM
spluff wrote:
Thank you.
I followed the instructions and is working fine. The only thing is that SonicStudio 3 is causing Cold War to sometimes fail to load so there must be some sort of conflict. I have uninstalled that for the time being.
I was just wondering what advantages are there to install your driver set instead of the Asus one ?
04-23-2021 07:08 AM
Cliff S wrote:
You can just uninstall SS3 and use the Realtek Audio Control apps EQ.

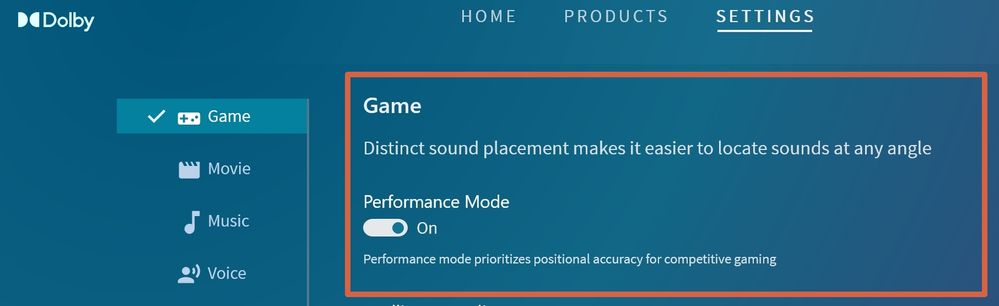

The only advantage for a gamer to use SS3, is the upmix/surround function, that basically does the same as the Dolby Access apps Game EQ's Performance Mode for sound virtual positioning.
04-23-2021 09:34 AM
spluff wrote:
Thank you for the reply.
I meant whats the advantage to using the driver app packages from MoKiChU compared to the Asus Website ?
Would you recommend dolby access? Do you have to pay?
04-23-2021 11:16 AM
05-07-2021 09:04 AM
Third Party Drivers :
SS3 Extension Driver : 1.2.14.0 WHQL [02/03/2020]
SS3 APO SoftwareComponent Driver : 3.3.1.0 WHQL [29/03/2021]
Third Party Drivers :
SS3|SSVM Extension Driver : 1.3.11.0 WHQL [31/08/2020]
SS3|SSVM VAD Media Driver : 10.38.41.588 WHQL [06/08/2019]
SS3 APO SoftwareComponent Driver : 3.3.1.0 WHQL [29/03/2021]
DTS SU Extension Driver : 1.1.68.0 WHQL [09/12/2020]
DTS APO4x Service SoftwareComponent Driver : 1.6.11.0 WHQL [18/03/2021]
DTS APO4x Core SoftwareComponent|SoftwareDevice Driver : 1.6.15.0 WHQL [10/03/2021]
Third Party Drivers :
DTSX Ultra Extension Driver : 1.6.90.0 WHQL [16/04/2021]
DTSX Ultra HSA SoftwareComponent Driver : 1.9.1.0 WHQL [11/09/2020]
DTS APO4x Service SoftwareComponent Driver : 1.6.11.0 WHQL [18/03/2021]
DTS APO4x Core SoftwareComponent|SoftwareDevice Driver : 1.6.15.0 WHQL [10/03/2021]
Third Party Drivers :
DTS HPXv1 Extension Driver : 1.1.1.0 WHQL [03/09/2019]
DTS HPXv1 HSA SoftwareComponent Driver : 2.1.0.0 WHQL [03/09/2019]
DTS APO3x Core SoftwareComponent|SoftwareDevice Driver : 1.2.0.0 WHQL [04/07/2020]
Third Party Drivers :
DTS Custom Extension Driver : 1.2.2.0 WHQL [07/12/2020]
DTS Custom HSA SoftwareComponent Driver : 2.1.2.0 WHQL [08/07/2020]
DTS APO3x Core SoftwareComponent|SoftwareDevice Driver : 1.2.0.0 WHQL [04/07/2020]
05-07-2021 02:26 PM
05-07-2021 03:39 PM
BelOmega wrote:
Greetings MoKiChU, I have a TUF GAMING Z490-PLUS (WI-FI) board and if I read this thread correctly the drivers I should download would be the
- Realtek Audio Drivers (UAD - ASUS TUF/PRIME DTS Custom MB) -
Am I correct on this?
