My first case design: Hybrid Octane..;)

KPRage
Level 10
Hey guys and, gals,

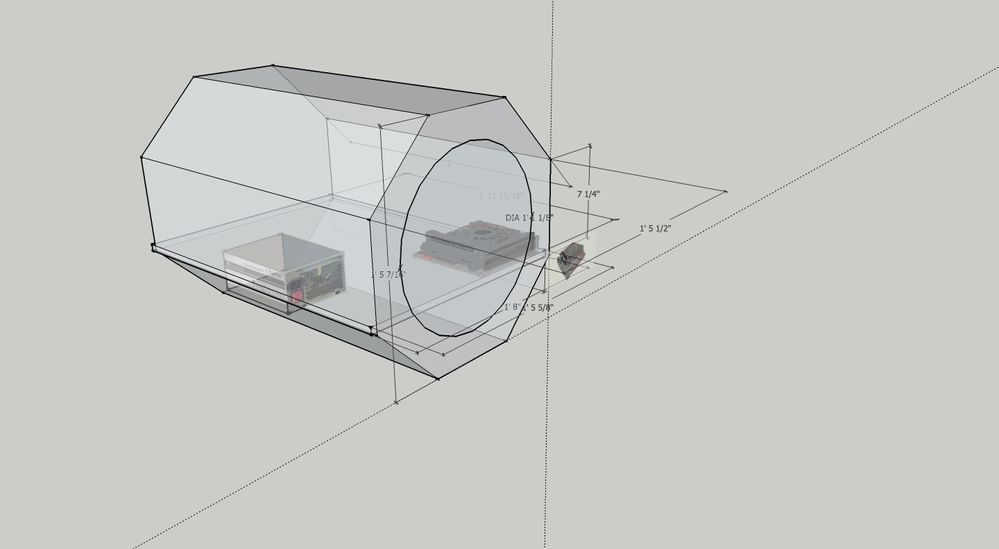

Here is my first time using Sketchup and, creating a template case design.. This is just my first test template and my first case design.. After lot of trials, could put it till this state.

This is going to be a Hybrid design. It can be used both as a bench case, as well as a home PC case. The inspiration behind this design is my passion to ROG.. 🙂

Please ignore the dimensions in the pic. This has changed in the real prototype that am cutting in cardboard.. 🙂

This might be the first hybrid case out there (well at least here in India I guess).. Hope you all will like it..

23529

The top and side (mainly left side and, the bottom right side) panels are removable.. Another uniqueness is the motherboard tray which will slide out/in similar to the keyboard tray in office tables.

There are many more additions planned to get this into shape. Will try to create a cardboard cut out (in progress) and post some more pics on how it may look..
